Introduction
The performance of a PP honeycomb panel does not depend only on the polypropylene resin or the nominal density of the core. The manufacturing process has a direct influence on cell geometry, wall thickness, density uniformity, flatness, dimensional stability, bonding performance, and ultimately the mechanical properties of the finished panel.
This is why PP honeycomb machinery is an important consideration for manufacturers purchasing or upgrading a production line.
A honeycomb core may have the correct nominal material specification on paper but still show inconsistent performance if the production process creates:
- Uneven cell size
- Irregular cell walls
- Density variation
- Local thinning
- Poor flatness
- Inconsistent thickness
- Weak bonding surfaces
- Excessive deformation
- Dimensional instability
For overseas buyers evaluating PP honeycomb production equipment, the key question should therefore not simply be:
“How fast can the machine produce PP honeycomb?”
A more useful question is:
“Can the production line consistently produce honeycomb cores with controlled geometry and stable mechanical properties?”
This article examines the relationship between PP honeycomb machinery and material quality, with particular attention to extrusion and forming, cell size, density uniformity, wall thickness, flatness, bonding quality, defect reduction, and production-line stability.
1. Why Machinery Determines PP Honeycomb Quality
PP honeycomb is a cellular polymer structure.
Unlike a simple flat plastic sheet, its performance depends heavily on geometry.
The manufacturing process must control multiple parameters simultaneously:
| Manufacturing Parameter | Potential Effect on Product |
|---|---|
| Polymer temperature | Melt flow and forming stability |
| Extrusion output | Wall thickness and dimensional consistency |
| Forming temperature | Cell formation and geometry |
| Cooling rate | Flatness and dimensional stability |
| Forming pressure | Cell shape and density |
| Line speed | Productivity and dimensional control |
| Tension control | Deformation and flatness |
| Cutting accuracy | Final dimensions |
| Surface treatment | Bonding performance |
| Process stability | Batch-to-batch consistency |
This means that equipment capability and process control are closely connected to final material quality.
2. Basic PP Honeycomb Manufacturing Process
Although production methods vary depending on the honeycomb design and equipment configuration, a simplified manufacturing sequence can be represented as:
PP Raw Material → Feeding → Plasticizing/Extrusion → Sheet Formation → Cellular Forming → Cooling → Stabilization → Cutting → Inspection → Packaging
Additional operations may be included depending on the product.
For example:
- Surface treatment
- Lamination
- Perforation
- Edge trimming
- Face-sheet bonding
- Online inspection
Each stage can introduce potential defects.
A stable production line therefore requires more than a high-output extruder. It requires coordination between the complete processing system.
3. Extrusion Stability and Polymer Processing
The first major stage is the controlled melting and extrusion of polypropylene.
The PP material must be heated sufficiently to achieve stable melt flow while avoiding unnecessary thermal degradation.
Important process variables can include:
- Barrel temperature
- Die temperature
- Screw speed
- Feed rate
- Melt pressure
- Melt temperature
- Cooling conditions
If extrusion output fluctuates, the downstream forming process may receive material with inconsistent thickness or temperature.
This can eventually appear as variations in honeycomb wall thickness or cell geometry.
Therefore, extrusion stability is one of the foundations of consistent PP honeycomb production.
4. Cell Size Is a Critical Quality Parameter
Cell size is one of the most visible structural characteristics of honeycomb material.
It directly influences:
- Local support
- Core density
- Surface stability
- Compression behavior
- Material consumption
- Bonding area
- Weight
For example, if the target cell size is not maintained consistently across the production width, different regions of the same sheet may have different mechanical behavior.
A production line should therefore be capable of maintaining controlled cell geometry throughout the manufacturing process.
Typical Quality Questions for Equipment Buyers
When evaluating PP honeycomb machinery, buyers should ask:
- What cell-size range can the machine produce?
- How is cell size adjusted?
- How stable is cell geometry during continuous production?
- Can the machine produce multiple specifications?
- What is the allowable dimensional tolerance?
- How is cell geometry monitored?
These questions are often more useful than looking only at the machine’s maximum production speed.
5. Density Uniformity
Density is another critical parameter.
For a PP honeycomb core, density depends on factors such as:
- PP material consumption
- Cell size
- Cell-wall thickness
- Forming geometry
- Processing stability
A nominal specification such as “80 kg/m³” does not tell the entire story.
Two cores with the same average density can have different quality if one has excellent uniformity while the other contains significant local density variation.
For example:
Panel A
80 kg/m³ average density
Low variation across the sheet
Panel B
80 kg/m³ average density
Large local variations
The two products may behave differently under mechanical loading.
Therefore, overseas buyers should evaluate both:
Average Density + Density Uniformity
rather than average density alone.
6. Wall Thickness Control
Honeycomb cell walls are relatively thin compared with the overall panel thickness.
This makes wall-thickness control particularly important.
If sections of the wall become excessively thin, local mechanical performance may decrease.
If the walls become excessively thick, the product may become heavier than necessary.
Therefore, the objective is not simply to maximize wall thickness.
It is:
Maintain a stable wall thickness appropriate for the target density and cell geometry.
Wall-thickness variation can result from:
- Unstable extrusion
- Uneven material distribution
- Temperature variation
- Forming instability
- Excessive line-speed fluctuation
- Inconsistent cooling
High-quality equipment should therefore provide stable material distribution throughout the forming process.
7. The Relationship Between Cell Size, Wall Thickness and Density
These three parameters should not be evaluated independently.
A simplified relationship can be expressed as:
Density ≈ Function of Cell Size + Wall Thickness + Material Distribution + Cell Geometry
For the same polymer:
- Smaller cells can increase material consumption
- Thicker walls can increase density
- Larger cells can reduce material consumption
- Thinner walls can reduce weight
But changing one parameter may affect other properties.
For example, reducing wall thickness may reduce weight but also reduce compression and shear resistance.
This is why PP honeycomb machinery needs sufficient process flexibility to produce different combinations of:
- Cell size
- Density
- Thickness
- Wall geometry
8. Flatness Is More Important Than It Looks
Flatness is sometimes treated as a cosmetic property.
For sandwich panels, it is much more important.
A PP honeycomb core with poor flatness can create problems during lamination.
Potential consequences include:
- Uneven bonding pressure
- Local gaps
- Face-sheet deformation
- Inconsistent panel thickness
- Local stress concentrations
- Reduced surface quality
For furniture and decorative panels, poor flatness can become immediately visible.
For structural sandwich panels, it can also influence load transfer.
Therefore, cooling and stabilization systems should be designed to control thermal deformation and residual stresses.
9. Cooling and Dimensional Stability
Polypropylene undergoes thermal contraction as it cools.
If cooling is uneven, different areas of the material may contract at different rates.
This can lead to:
- Warpage
- Curling
- Thickness variation
- Internal stress
- Dimensional instability
A stable cooling system is therefore important for continuous PP honeycomb production.
The relationship can be summarized as:
Stable Melt → Stable Forming → Controlled Cooling → Stable Geometry
This is especially important for large-format honeycomb sheets.
The larger the panel, the more visible dimensional instability can become.
10. Bonding Quality Determines Sandwich Panel Performance

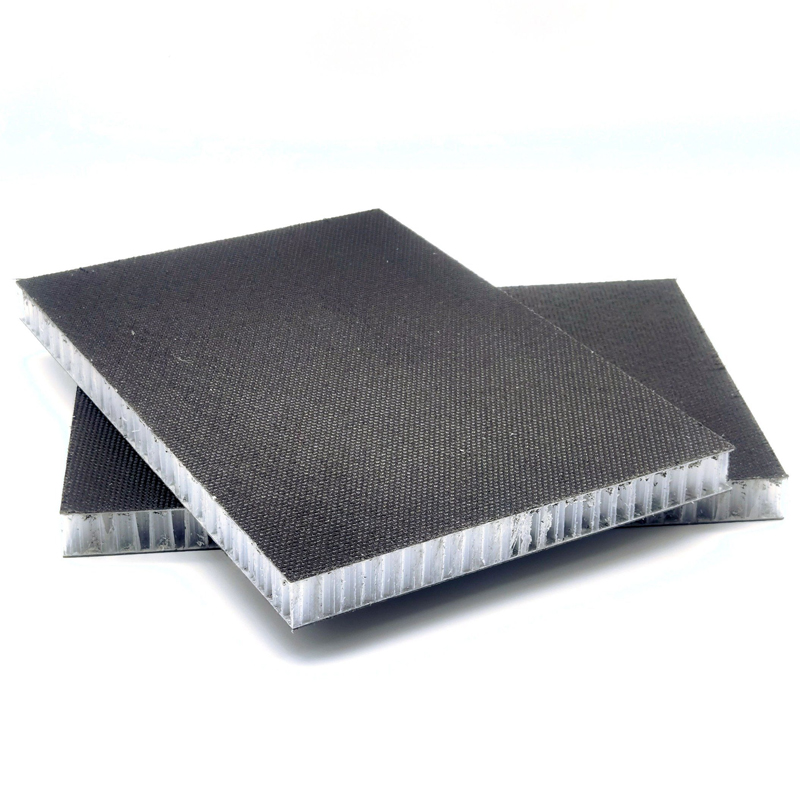

The PP honeycomb core is often combined with face sheets to create the final sandwich panel.
Possible face-sheet materials include:
- Aluminum
- FRP
- PP
- Composite laminates
- Decorative sheets
The bonding interface transfers loads between the face sheets and the core.
If bonding is inadequate, the final panel may experience:
- Delamination
- Core separation
- Local debonding
- Reduced shear transfer
- Surface deformation
- Reduced fatigue durability
Therefore, a high-quality PP honeycomb core is not enough.
The manufacturer must also establish an appropriate bonding process.
11. Surface Preparation for PP Honeycomb
Polypropylene has relatively low surface energy, which can make bonding more challenging than bonding certain other materials.
Depending on the panel design, manufacturers may use:
- Surface treatment
- Corona treatment
- Plasma treatment
- Primers
- Specialized adhesives
- Thermal bonding
- Mechanical integration
The appropriate method depends on the face-sheet material and adhesive system.
For equipment buyers, it is therefore important to ask whether the PP honeycomb production line is compatible with the intended downstream bonding technology.
12. Defect Reduction in PP Honeycomb Production
Common production defects may include:
| Defect | Possible Cause | Potential Effect |
|---|---|---|
| Uneven cell size | Forming instability | Non-uniform mechanical performance |
| Thin cell walls | Uneven extrusion | Reduced local strength |
| Thick cell walls | Excess material | Increased weight |
| Warpage | Uneven cooling | Poor lamination |
| Surface deformation | Forming or handling issue | Poor appearance |
| Density variation | Material distribution | Inconsistent properties |
| Cracks | Excessive stress or processing conditions | Reduced durability |
| Delamination | Poor bonding | Structural failure |
| Dimension deviation | Cutting or line instability | Assembly problems |
A modern production system should therefore focus on defect prevention, not simply final-product inspection.
13. Online Process Monitoring
Continuous monitoring can significantly improve production consistency.
Depending on the equipment configuration, manufacturers may monitor:
- Melt temperature
- Melt pressure
- Extrusion output
- Line speed
- Product thickness
- Core width
- Cell geometry
- Cooling conditions
- Surface appearance
The objective is to detect process deviations before large quantities of defective material are produced.
This is particularly important in high-volume manufacturing.
A small dimensional error repeated continuously can result in a significant amount of scrap.
14. Production Line Stability vs Maximum Speed
When purchasing PP honeycomb machinery, production speed is often one of the first specifications buyers compare.
However, maximum speed should not be considered independently.
There is an important difference between:
Maximum Line Speed
and
Stable Production Speed
For example, a machine may theoretically reach a high line speed but produce inconsistent cell geometry at that speed.
A slightly lower production speed with stable quality may provide better overall productivity.
A useful purchasing equation is:
Effective Output = Production Speed × Yield × Stable Operating Time
Therefore:
A fast machine with a high defect rate may produce less usable product than a slower machine with excellent process stability.
This is an important consideration for international manufacturers evaluating equipment investment.
15. Production Yield and Scrap Rate
Equipment efficiency should also be evaluated through production yield.
A simplified formula is:
[
Yield = \frac{Qualified\ Product}{Total\ Production} \times 100%
]
For example, if a production line produces 10,000 kg of material but only 9,500 kg meets the required specification:
[
Yield = 95%
]
The remaining material may require:
- Reprocessing
- Recycling
- Downgrading
- Disposal
Therefore, equipment buyers should request information about:
- Typical production yield
- Startup scrap
- Changeover waste
- Process stability
- Defect frequency
- Material recovery
Actual results depend on the material specification and production conditions, so supplier data should be verified through trials.
16. Changeover Flexibility
Many manufacturers do not produce only one PP honeycomb specification.
They may need different:
- Cell sizes
- Densities
- Thicknesses
- Widths
- Core structures
Therefore, changeover time becomes an important equipment consideration.
A flexible production line can help manufacturers serve different markets without installing a completely separate production system for every specification.
Equipment buyers should evaluate:
- Tool-change time
- Parameter adjustment
- Automatic control
- Recipe storage
- Cleaning requirements
- Startup waste
For export-oriented manufacturers serving multiple customers, production flexibility can be as important as maximum output.
17. Automation and Process Control
Automation can improve consistency by reducing operator-dependent variation.
Depending on the production line, automation may be applied to:
- Feeding
- Temperature control
- Extrusion
- Forming
- Cooling
- Cutting
- Stacking
- Quality monitoring
A centralized control system can also allow operators to monitor production parameters in real time.
For manufacturers supplying international markets, process data can help establish repeatability between production batches.
18. How to Evaluate PP Honeycomb Machinery Before Purchase
An overseas buyer should evaluate equipment using a structured checklist.
Material Capability
- What PP grades can be processed?
- What recycled PP content can be accommodated?
- What additives are compatible?
Product Range
- What cell sizes can be produced?
- What density range is available?
- What thickness range is available?
- What maximum product width can be achieved?
Process Stability
- How stable is extrusion output?
- How stable is cell geometry?
- How is cooling controlled?
- How is thickness controlled?
Quality Control
- How is density measured?
- How is cell size measured?
- How is wall thickness monitored?
- Is online inspection available?
Production Efficiency
- Stable operating speed
- Maximum output
- Yield
- Scrap rate
- Changeover time
Maintenance
- Spare-parts availability
- Maintenance intervals
- Remote technical support
- Operator training
- Troubleshooting support
These factors provide a much more complete basis for equipment comparison than price alone.
19. Suggested Quality-Control Framework
A professional PP honeycomb manufacturer can establish quality control at several stages.
Incoming Material Inspection
Check:
- PP resin
- Additives
- Recycled material
- Moisture and contamination where relevant
Process Inspection
Monitor:
- Temperature
- Pressure
- Extrusion stability
- Line speed
- Forming conditions
Core Inspection
Check:
- Density
- Thickness
- Cell size
- Wall thickness
- Flatness
- Visual defects
Finished Panel Inspection
Check:
- Bonding strength
- Surface quality
- Dimensional accuracy
- Bending behavior
- Compression performance
- Shear behavior where applicable
This creates a quality-control chain from raw material to finished product.
20. PP Honeycomb Machinery: What Matters Most?
For a buyer planning a new PP honeycomb production line, the most important equipment characteristics can be summarized as follows:
| Equipment Factor | Importance to Product Quality |
|---|---|
| Stable extrusion | High |
| Precise forming | High |
| Cell-size control | High |
| Wall-thickness consistency | High |
| Cooling control | High |
| Flatness control | High |
| Automated process control | High |
| Online monitoring | Medium–High |
| Flexible specifications | Medium–High |
| High maximum speed | Medium |
| Easy maintenance | High |
| Technical support | High |
This illustrates an important purchasing principle:
The highest machine speed is not necessarily the highest-value machine.
For industrial production, repeatability, yield, uptime, and product consistency can have a greater influence on the total cost of ownership.
21. Total Cost of Ownership
The purchase price of PP honeycomb machinery is only one part of the investment.
A more complete calculation should consider:
Machine Price + Installation + Energy + Labor + Maintenance + Spare Parts + Scrap + Downtime
For example, two production lines may have similar purchase prices but different operating costs.
Machine A may have:
- Higher energy consumption
- Higher scrap
- More frequent maintenance
Machine B may have:
- Lower energy consumption
- Better process stability
- Higher yield
- Easier maintenance
The second system may provide a better long-term manufacturing economics even if the initial equipment price is not the lowest.
22. Questions to Ask a PP Honeycomb Machinery Supplier
Before purchasing equipment, international buyers should request specific technical information.
Product Questions
- What PP honeycomb specifications can the machine produce?
- What density range is available?
- What cell sizes can be manufactured?
- What maximum width can be produced?
- What thickness tolerance can be achieved?
Quality Questions
- How is density uniformity controlled?
- How is cell size controlled?
- How is wall thickness controlled?
- How is flatness maintained?
- What quality tests are normally performed?
Production Questions
- What is the stable production speed?
- What is the normal production yield?
- What is the typical startup waste?
- How long does specification changeover take?
- How much operator intervention is required?
Service Questions
- Is installation support available?
- Is operator training included?
- Are spare parts readily available?
- Is remote technical support provided?
- Can the supplier perform production trials with the buyer’s PP material?
These questions help buyers distinguish between a machine that can technically produce PP honeycomb and a production system capable of producing it consistently.
Conclusion
PP honeycomb material quality begins with polymer selection, but it does not end there.
The manufacturing process determines whether the theoretical advantages of the material can be converted into consistent commercial products.
PP honeycomb machinery directly influences:
- Cell size
- Density uniformity
- Wall thickness
- Core thickness
- Flatness
- Dimensional stability
- Bonding performance
- Production yield
- Defect rate
- Long-term manufacturing consistency
For this reason, equipment selection should be approached as a material-quality decision, not simply a machinery purchase.
The most important question for an overseas buyer is not:
“How many tons per day can this machine produce?”
It is:
“Can this production line consistently manufacture the PP honeycomb specifications my customers require, at the required quality, yield, and operating cost?”
A reliable production line should combine stable extrusion, controlled cellular forming, precise cooling, accurate cutting, effective quality inspection, and dependable automation.
When these elements work together, manufacturers can achieve more consistent PP honeycomb cores and build higher-quality sandwich panels for transportation, construction, marine, furniture, and other lightweight structural applications.
For manufacturers planning long-term production, cell geometry consistency, density uniformity, wall-thickness control, flatness, bonding compatibility, production yield, and equipment reliability should therefore be evaluated together with machine output and purchase price.
