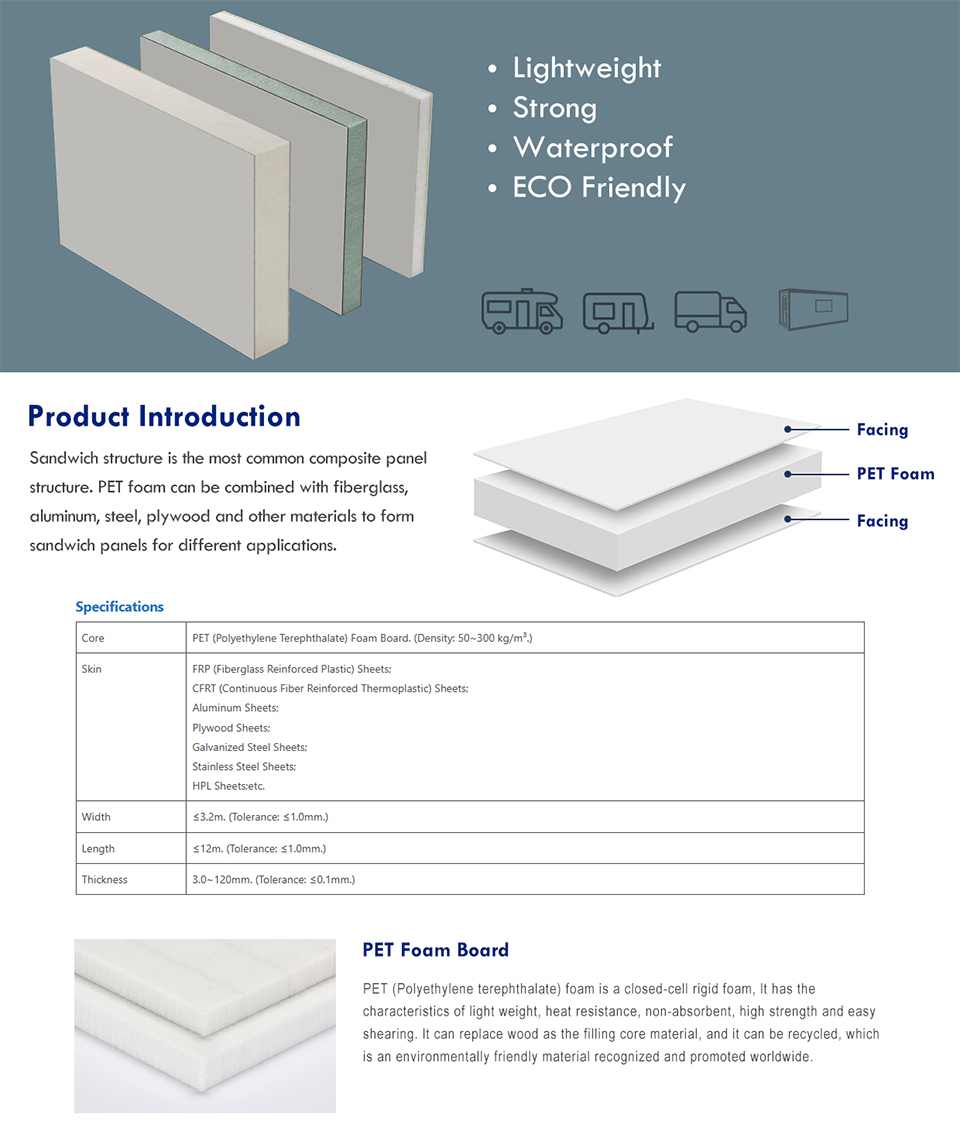

PET Foam Core Board is a high-performance structural core material engineered for modern composite sandwich constructions. Manufactured from thermoplastic polyethylene terephthalate (PET) resin through a controlled extrusion and foaming process, PET Foam Core combines excellent mechanical strength, thermal stability, chemical resistance, and long-term durability. It is widely adopted in marine, wind energy, transportation, construction, and industrial composite applications where lightweight design, sustainability, and reliable performance are critical.
As a next-generation foam core solution, PET Foam Core Board is designed to meet the increasing demands of engineers and manufacturers seeking alternatives to traditional core materials such as PVC foam, balsa wood, or PU foam. Its balanced properties and recyclability make it particularly suitable for large-scale industrial production and environmentally responsible projects.
Material Composition and Manufacturing Technology
PET Foam Core Board is produced from modified PET polymer, which is inherently strong, tough, and temperature resistant. Through precise control of foaming parameters, the material achieves a uniform closed-cell structure with consistent density distribution across the board.
Key manufacturing characteristics include:
- Continuous extrusion process for stable quality
- Homogeneous cell morphology for predictable mechanical behavior
- Optional surface finishing to enhance bonding with composite skins
- Compatibility with thermoset and thermoplastic resin systems
The closed-cell structure ensures low resin absorption while maintaining excellent shear and compressive performance, making PET Foam Core an efficient and cost-effective solution for composite laminates.
Key Performance Advantages
High Mechanical Strength
PET Foam Core Board offers superior compressive strength and shear properties relative to its density. This allows designers to reduce overall laminate weight without sacrificing structural integrity.
Excellent Thermal Resistance
With a higher heat deflection temperature than many conventional foam cores, PET Foam Core maintains dimensional stability during elevated-temperature processing, such as vacuum infusion and resin transfer molding (RTM).
Chemical and Moisture Resistance
PET Foam Core demonstrates excellent resistance to water absorption, oils, fuels, and most industrial chemicals, making it suitable for harsh operating environments, including marine and offshore applications.
Sustainable and Recyclable
As a thermoplastic material, PET Foam Core Board supports recycling and reuse. It can be manufactured using recycled PET content, contributing to reduced environmental impact and alignment with global sustainability initiatives.
Typical Physical Properties
| Property | Unit | Typical Value |
|---|---|---|
| Density Range | kg/m³ | 60 – 300 |
| Cell Structure | – | Closed-cell |
| Water Absorption (24h) | % | < 1.0 |
| Operating Temperature | °C | -40 to +120 |
| Heat Deflection Temperature | °C | ≥ 150 |
| Thermal Conductivity | W/m·K | 0.030 – 0.045 |
Values are typical and may vary depending on density and product grade.
Mechanical Performance Data
| Density (kg/m³) | Compressive Strength (MPa) | Compressive Modulus (MPa) | Shear Strength (MPa) | Shear Modulus (MPa) |
|---|---|---|---|---|
| 80 | 0.8 – 1.2 | 35 – 50 | 0.6 – 0.8 | 20 – 30 |
| 100 | 1.2 – 1.8 | 55 – 75 | 0.9 – 1.2 | 30 – 45 |
| 130 | 2.0 – 2.8 | 90 – 120 | 1.4 – 1.8 | 55 – 70 |
| 200 | 4.0 – 5.5 | 180 – 240 | 2.8 – 3.5 | 120 – 150 |
These performance characteristics make PET Foam Core Board highly suitable for load-bearing sandwich structures subjected to dynamic and static stresses.
Processing Compatibility
PET Foam Core Board is compatible with a wide range of composite manufacturing processes, including:
- Vacuum infusion
- Hand lay-up
- Resin transfer molding (RTM)
- Compression molding
- Thermoplastic lamination
The material exhibits excellent bonding performance with common resin systems such as epoxy, polyester, vinyl ester, and polyurethane. Optional grooving, perforation, or scrim backing can be supplied to further enhance resin flow and adhesion.

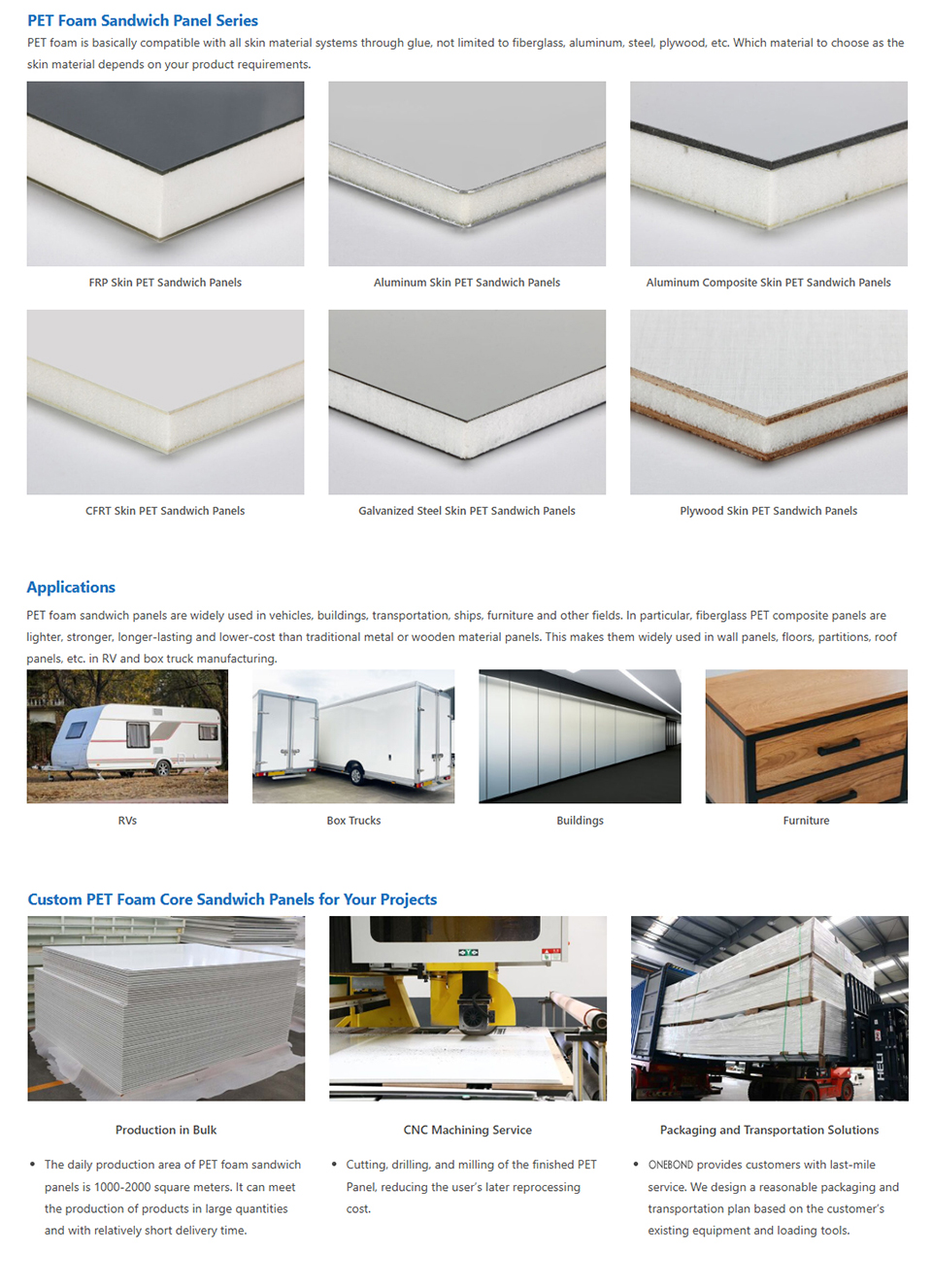

Application Areas
Marine and Boat Building
PET Foam Core Board is extensively used in hulls, decks, bulkheads, and superstructures. Its low water absorption and fatigue resistance ensure long service life in marine environments.
Wind Energy
In wind turbine blades, PET Foam Core provides a strong, lightweight core that supports large blade geometries while maintaining dimensional stability under cyclic loads.
Transportation
Ideal for rail, truck, and bus interior panels, floors, and structural components, PET Foam Core contributes to weight reduction, improved fuel efficiency, and enhanced fire performance when combined with suitable skins.
Construction and Infrastructure
Used in façade panels, sandwich wall systems, and modular structures, PET Foam Core Board delivers excellent insulation, mechanical performance, and durability.
Fire Performance and Safety Options
PET Foam Core Board can be formulated to meet various fire safety standards. Flame-retardant grades are available upon request, offering improved fire behavior while maintaining mechanical performance.
| Fire Property | Standard | Performance |
|---|---|---|
| Flame Retardancy | EN 13501 | Up to B-s1, d0 (with FR grade) |
| Smoke Density | ASTM E662 | Low |
| Toxicity | – | Halogen-free options available |
Dimensional Availability
PET Foam Core Board is available in a wide range of standard and customized formats to suit different project requirements.
| Parameter | Standard Range |
|---|---|
| Thickness | 5 – 100 mm |
| Length | Up to 3000 mm |
| Width | Up to 1500 mm |
| Surface Options | Plain, grooved, perforated |
Custom cutting, CNC machining, and kitting services can be provided to streamline customer production processes.
Conclusion
PET Foam Core Board represents a versatile, high-performance, and sustainable solution for composite sandwich structures across multiple industries. Its balanced combination of strength, thermal stability, moisture resistance, and recyclability positions it as a reliable alternative to traditional core materials. For manufacturers seeking consistent quality, processing efficiency, and long-term value, PET Foam Core Board delivers a proven foundation for advanced composite design and industrial innovation.
