Wind Turbine Blade Material Qualification & Design Allowables Report

1. Executive Engineering Summary

Wind turbine blades are lightweight composite structures designed to withstand millions of cyclic load events over their service life. Within the blade shell, sandwich construction is widely used because a low-density core can separate the structural face sheets and substantially increase bending stiffness without adding excessive mass.

PVC Foam Core is one of the established polymeric foam options for sandwich structures used in wind turbine blades. Its engineering value does not come simply from having a low density. The more important question is whether the selected core can provide the required combination of:

• Core shear strength
• Core shear modulus
• In-plane compression resistance
• Through-thickness compression strength
• Skin-core bonding performance
• Fatigue resistance
• Machining quality
• Resin compatibility
• Dimensional stability
• Weight efficiency
• Manufacturing consistency

For wind turbine blades, density alone is not a sufficient material-selection criterion.

A 60 kg/m³ PVC Foam Core may provide attractive weight reduction, but a higher-density grade may be required in a high-load region where core shear, compression or local buckling governs the design. Conversely, using a high-density PVC Foam Core throughout the entire blade can unnecessarily increase blade mass and manufacturing cost.

The engineering objective is therefore:

Use the minimum practical core density that provides sufficient structural performance, manufacturing reliability and fatigue durability for each blade region.

Research on wind-turbine sandwich structures has demonstrated that both foam density and core machining configuration can significantly influence in-plane compression strength and failure behavior.

This makes PVC Foam Core selection a zoning and qualification problem, rather than simply a material purchasing problem.

---

2. Where PVC Foam Core Fits Inside a Wind Turbine Blade

A typical composite wind turbine blade contains several structurally different regions.

Blade Region	Typical Structural Requirement	Core Function	Relative Core Demand
Main shell	Bending + compression/tension	Maintain skin separation	High
Spar cap vicinity	High axial load	Local structural support	Very High
Shear web	Shear + compression	Increase panel stiffness	High
Trailing edge	Buckling resistance + shape retention	Stabilize skins	Medium–High
Leading edge	Impact + aerodynamic shape	Structural support	Medium–High
Tip region	Low mass + aerodynamic shape	Lightweight support	Low–Medium
Root transition	High local stress	Local reinforcement	Very High
Tapered transition	Load transfer + geometric transition	Controlled stiffness transition	High

This immediately shows why a single-density PVC Foam Core specification may be unsuitable for a large blade.

The core is part of a load-transfer system consisting of:

Fiber-reinforced face sheet → adhesive/resin interface → PVC Foam Core → opposite interface → opposite face sheet

A core that performs well as a bare material can still produce poor sandwich performance if:

• the surface is contaminated,
• the core is incorrectly machined,
• resin distribution is poor,
• bonding is incomplete,
• grooves contain excessive voids,
• the core is crushed during handling,
• density varies excessively,
• or the interface is weaker than the core itself.

ASTM C273 specifically notes that measured core shear performance is affected by the facing material, adhesive, fabrication method, core geometry, density, specimen preparation, conditioning and testing environment.

---

3. The Wind Blade Core Selection Triangle

For wind turbine blade design, three competing objectives dominate core selection:

3.1 Weight

Lower density reduces core mass.

3.2 Structural Performance

Higher density generally provides greater mechanical capability, particularly where compression, shear or local stability is critical.

3.3 Manufacturing Reliability

The core must be machinable, bondable and compatible with the infusion process.

Therefore:

Low Density ≠ Automatically Better

and

High Density ≠ Automatically Safer

The correct design approach is:

Optimize core density according to local structural load, geometry, fatigue requirement and manufacturing process.

---

4. Engineering Density Map for PVC Foam Core

The following ranges should be treated as an engineering selection framework, not universal material specifications. Actual allowable values must come from supplier test data and project-specific qualification.

PVC Foam Core Density	Typical Engineering Position	Potential Application
45–60 kg/m³	Ultra-light structural core	Low-load shell zones, aerodynamic shaping
60–80 kg/m³	Lightweight structural core	General shell areas
80–100 kg/m³	Medium structural core	Higher-load shell and web areas
100–130 kg/m³	Higher-strength structural core	Local high-load regions
130–160 kg/m³	High-density structural core	Root transitions and concentrated loads
160–200 kg/m³	Very high-density structural core	Highly loaded local reinforcement
>200 kg/m³	Special-purpose structural core	Local inserts or exceptional load conditions

The actual density distribution should be determined from blade structural analysis rather than selected from a catalog alone.

---

5. Core Density vs Mechanical Performance

A simplified engineering comparison can be structured as follows:

Parameter	Low Density	Medium Density	High Density
Weight	Excellent	Good	Lower
Compression Strength	Lower	Medium	Higher
Core Shear Strength	Lower	Medium	Higher
Core Shear Modulus	Lower	Medium	Higher
Local Buckling Resistance	Lower	Medium	Higher
Machining Load	Lower	Medium	Higher
Material Cost/m³	Usually lower	Medium	Higher
Blade Weight	Lower	Medium	Higher
Local Load Capacity	Limited	Good	Excellent
Best Use	Low-load zones	General structure	High-load zones

The critical point is that specific performance per unit mass can be more useful than absolute strength.

For example, an engineer should compare:

[
\frac{\text{Core Shear Strength}}{\text{Core Density}}
]

and:

[
\frac{\text{Core Shear Modulus}}{\text{Core Density}}
]

rather than simply choosing the highest numerical shear strength.

---

6. Core Thickness Is the Second Major Design Variable

Density and thickness should not be evaluated separately.

A thicker lightweight core can sometimes provide greater sandwich bending stiffness than a thinner high-density core while maintaining lower total weight.

For an idealized sandwich structure, bending stiffness is strongly influenced by the distance between the face sheets.

Core Thickness	Typical Structural Effect
5–10 mm	Limited skin separation
10–20 mm	Moderate stiffness contribution
20–30 mm	Significant sandwich effect
30–50 mm	High bending-stiffness contribution
50–80 mm	Very high geometric stiffness
>80 mm	Special structural/aerodynamic application

The actual optimum depends on blade geometry, face-sheet laminate, core shear modulus, local buckling requirements and manufacturing limitations.

Therefore, procurement specifications should state:

Density + Thickness + Mechanical Properties

rather than simply:

PVC Foam Core, 80 kg/m³

---

7. The Most Important Mechanical Parameters

For wind blade applications, a material data sheet should preferably include the following.

Property	Why It Matters
Density	Weight and structural classification
Thickness	Sandwich geometry
Compression Strength	Resistance to local crushing
Compression Modulus	Local stiffness
Shear Strength	Core load transfer
Shear Modulus	Sandwich stiffness
Tensile Strength	Core integrity
Elongation	Deformation tolerance
Water Absorption	Environmental stability
Dimensional Stability	Manufacturing accuracy
Thermal Stability	Cure compatibility
Surface Quality	Bonding reliability
Resin Compatibility	Infusion performance
Cell Structure	Mechanical consistency
Thickness Tolerance	Structural consistency

For material qualification, the values should be connected to the test method, specimen condition and test direction.

A number without its test condition is not a complete engineering property.

---

8. Recommended Test Standard Matrix

ASTM standards provide a useful framework for core and sandwich characterization.

Test	Standard	Engineering Purpose
Core Shear	ASTM C273/C273M	Core shear strength and modulus
Sandwich Flexure	ASTM C393/C393M	Sandwich structural response
Core Compression	ASTM C365/C365M	Flatwise compression
Core Density	ASTM C271/C271M	Density verification
Water Absorption	ASTM C272/C272M	Environmental conditioning
Facesheet Properties	ASTM D7249/D7249M	Facesheet contribution
Sandwich Stiffness	ASTM D7250/D7250M	Flexural/shear stiffness
Flatwise Tensile	ASTM C297/C297M	Interface/core tensile behavior
Edgewise Compression	ASTM C364/C364M	Panel compression
Dimensional Stability	ASTM D6772/D6772M	Thermal/environmental stability
Shear Fatigue	ASTM C394/C394M	Cyclic shear performance

ASTM C273 is particularly important when establishing the core’s basic shear properties. ASTM notes that the method is suitable for material specifications, sandwich design, R&D and quality assurance.

ASTM C393, meanwhile, is useful when evaluating the complete sandwich construction, including core-to-facing behavior and sandwich stiffness.

---

9. Bare Core Testing vs Finished Sandwich Testing

This distinction is critical.

Bare Core Testing

Answers:

How strong is the PVC Foam Core itself?

Sandwich Testing

Answers:

How well does the complete structure perform?

A blade manufacturer should ideally perform both.

Qualification Level	Test Object	Main Question
Level 1	Raw PVC Foam Core	Is the material consistent?
Level 2	Core + Resin/Adhesive	Is bonding reliable?
Level 3	Flat Sandwich Panel	Does the construction work?
Level 4	Representative Blade Section	Does the design work?
Level 5	Full Blade	Does the complete system survive qualification?

This hierarchy prevents a common procurement mistake:

Approving the foam based only on a supplier’s material datasheet.

---

10. Why Core Shear Is Critical in Wind Turbine Blades

The core transfers shear between the face sheets.

When a blade bends, the upper and lower skins carry major tensile and compressive loads, while the sandwich core helps maintain separation and transfer transverse shear.

A simplified structural relationship is:

[
\tau_{core} = \frac{V}{A_{core}}
]

where:

• ( \tau_{core} ) = core shear stress
• ( V ) = transverse shear force
• ( A_{core} ) = effective core shear area

As blade size increases, load levels can increase dramatically.

This is why the same PVC Foam Core grade may be acceptable for a smaller blade region but unsuitable for a larger or more highly loaded structure.

---

11. Core Shear Modulus vs Core Shear Strength

These two properties should never be treated as interchangeable.

Core Shear Strength

Defines the approximate load level at which shear failure occurs.

Core Shear Modulus

Controls deformation before failure and contributes to sandwich stiffness.

Situation	More Important Parameter
Ultimate shear failure	Shear strength
Deflection control	Shear modulus
Fatigue deformation	Both
Local buckling	Modulus + strength
Sandwich stiffness	Shear modulus
Structural allowable	Both

ASTM C273 explicitly addresses both core shear strength and shear modulus, while ASTM C393 can provide sandwich-level response.

---

12. In-Plane Compression: An Often Underestimated Requirement

Wind turbine blade sandwich structures are not subjected only to bending.

In-plane compression can become critical in shell structures, particularly in regions where aerodynamic loads and blade bending produce compressive stress.

A 2024 study of sandwich structures representative of wind turbine blade construction found that both foam density and core machining configuration affected in-plane compressive strength and failure behavior.

The observed failure mechanisms included:

• Global buckling
• Core shear
• Skin/core debonding
• Local buckling
• Combined instability

This means that procurement specifications should not focus exclusively on:

Core Shear Strength

They should also consider:

Core Compression + Sandwich Compression + Skin-Core Bonding

---

13. Core Machining Is a Structural Design Variable

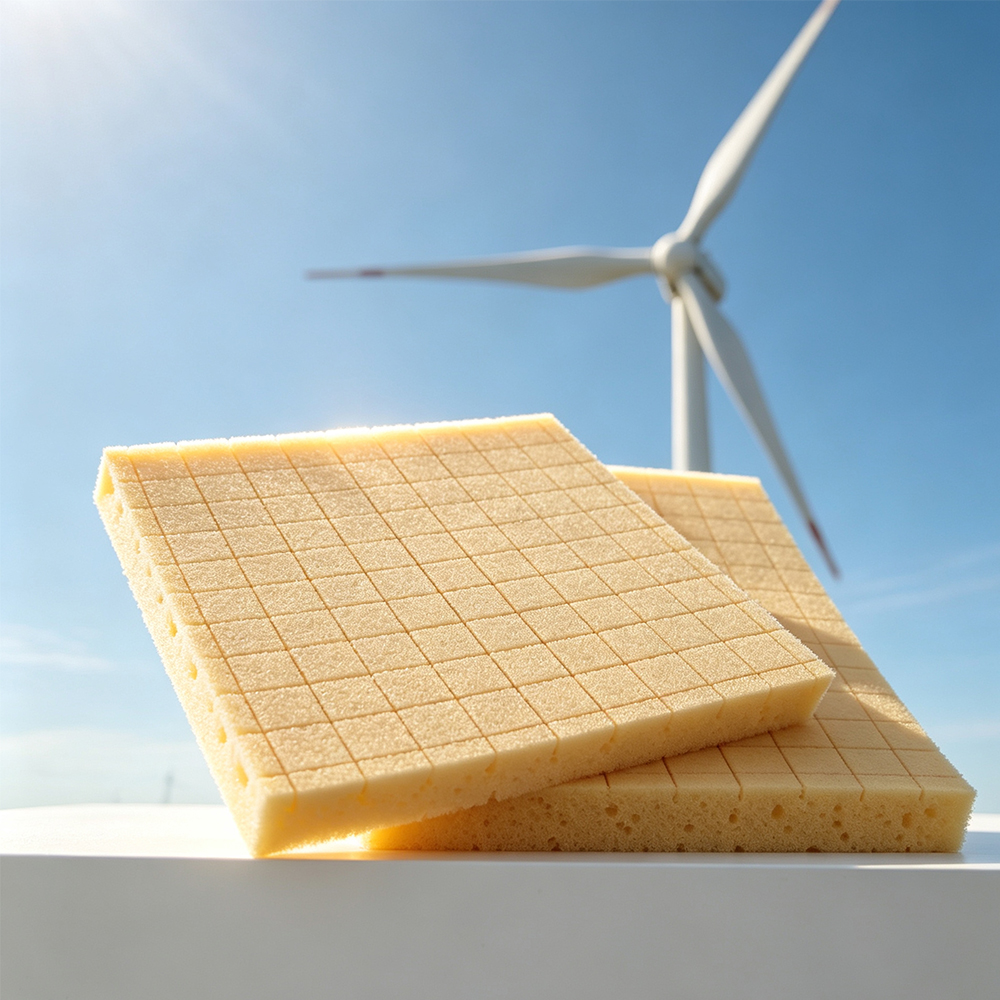

Wind turbine PVC Foam Core is often machined before infusion.

Common configurations include:

• Grooves
• Cross grooves
• Perforations
• Slits
• Channels
• Contoured surfaces
• Tapered sections
• CNC-cut transitions

Machining is necessary for both geometry and resin flow, but it changes the effective mechanical structure.

A study of blade sandwich structures found that different groove/perforation configurations produced different compression failure modes and mechanical responses.

Therefore:

Machined PVC Foam Core should be qualified as a structural configuration, not simply regarded as the same material after cutting.

---

14. Groove and Perforation Quality

Grooves and perforations can improve resin movement during vacuum infusion.

However, excessive machining can reduce effective core area and create stress concentrations.

A simplified quality matrix is:

Machining Condition	Resin Flow	Structural Risk
No machining	Poor in complex infusion	Low
Light groove	Improved	Low
Controlled groove + perforation	Excellent	Medium
Deep groove	Excellent	Higher
Excessive perforation	Very high	High
Irregular CNC machining	Uncontrolled	High
Damaged/over-compressed core	Unpredictable	Very High

The optimum pattern depends on the resin system, infusion strategy, core thickness and blade geometry.

---

15. A Critical Failure Example: Resin-Filled Grooves

One of the most important lessons from wind blade failure analysis is that resin distribution inside the machined core can affect structural failure.

Fractographic research on sandwich panels from composite wind turbine blades identified partially resin-filled grooves as a source of large voids, with crack propagation and skin/core debonding associated with these defects.

This creates an important procurement question:

Does the PVC Foam Core supplier only provide the material, or can the supplier consistently control the machining geometry?

For large-scale blade manufacturing, this distinction can become commercially significant.

---

16. Case Study 1 — 80 kg/m³ PVC Foam Core Wind Blade Shell

A published experimental study investigated composite sandwich interfaces using an 80 kg/m³ PVC foam core with fiberglass face sheets representative of wind turbine blade construction. The specimens included 10, 20 and 30 mm core thicknesses.

Engineering Configuration

Parameter	Example
Core Material	PVC Foam
Density	80 kg/m³
Core Thickness	10 / 20 / 30 mm
Face Sheet	Fiberglass Composite
Manufacturing	Vacuum Bagging
Application	Wind Turbine Blade
Main Evaluation	Core-Face Interface

The significance of this case is not that 80 kg/m³ is universally correct.

The lesson is:

The same core density can be evaluated at multiple thicknesses because structural performance depends on the complete sandwich geometry.

---

17. Case Study 2 — PVC Foam Core Under In-Plane Compression

A dedicated study of wind turbine blade sandwich structures investigated three foam densities and different core machining configurations under in-plane compression. The research found that machining configuration influenced failure behavior, while increasing foam density changed the dominant failure mechanisms.

The reported failure transitions included:

Global Buckling

→ Core Shearing + Skin/Core Debonding

→ Skin/Core Debonding

depending on core configuration and density.

This is highly relevant to material procurement because it demonstrates that:

Increasing density does not automatically eliminate failure.

The structural configuration must still be designed correctly.

---

18. Case Study 3 — Tapered PVC Foam Core in Wind Blade Structures

Tapered sandwich regions are frequently used where structural thickness changes.

A 2025 study examined PVC Foam Core tapered sandwich specimens representative of wind turbine blade applications under four-point bending. The research evaluated taper angles of 11°, 18° and 45°.

The study reported that:

• The 18° taper configuration had 7.4% higher static strength than the reference configuration.
• The 45° configuration had 16.5% lower strength.
• Under high fatigue load levels, the 18° configuration produced more than twice the fatigue life of the reference group.

These are study-specific results, not universal design values.

The broader engineering lesson is more important:

Core transition geometry can strongly influence both static strength and fatigue life.

Therefore, suppliers should be capable of producing controlled tapered PVC Foam Core rather than only flat sheets.

---

19. Case Study 4 — Full-Scale Blade Fatigue Perspective

Full-scale wind turbine blade testing introduces another level of complexity.

Published work on a 14.3 m composite blade included fiberglass/polyester laminates, PVC foams and intentionally introduced defects such as:

• Laminate wrinkles
• Core/skin debonding
• Trailing-edge adhesive debonding
• Shear-web/spar-cap debonding

The study demonstrates the importance of evaluating defect-driven fatigue damage rather than relying only on ideal laboratory specimens.

For procurement, this means:

Material consistency is part of fatigue design.

---

20. Fatigue Should Be Treated as a Separate Qualification

A static test asks:

How much load can the structure survive once?

A fatigue test asks:

How does damage accumulate under repeated loading?

These are fundamentally different questions.

Qualification	Typical Objective
Static Compression	Ultimate capacity
Static Shear	Core shear failure
Flexural Test	Sandwich structural response
Fatigue Shear	Cyclic core degradation
Fatigue Bending	Structural durability
Environmental Fatigue	Combined durability
Damage-Tolerance Test	Defect sensitivity

For wind blades, fatigue qualification should be based on the actual load spectrum or a justified representative spectrum rather than simply performing one arbitrary cycle test.

---

21. Fatigue Failure Sequence

A simplified sandwich fatigue progression can be represented as:

Micro-Damage

↓

Core Shear Deformation

↓

Interface Damage

↓

Local Debonding

↓

Crack Propagation

↓

Local Buckling

↓

Structural Load Redistribution

↓

Progressive Failure

The actual sequence depends on the laminate, adhesive, core, geometry and loading condition.

This is why microscopic defects that appear insignificant during incoming inspection can become important over millions of load cycles.

---

22. PVC Foam Core Failure Modes in Wind Blades

Failure Mode	Typical Cause	Procurement/Design Response
Core Shear	Excessive transverse load	Increase density/thickness
Core Crushing	Local compression	Higher-density core or insert
Skin-Core Debonding	Poor bonding/voids	Improve surface and infusion
Global Buckling	Insufficient sandwich stiffness	Increase thickness/stiffness
Local Buckling	Thin/weak structure	Improve core support
Core Cracking	Stress concentration	Optimize geometry
Groove Void	Poor resin distribution	Improve machining/infusion
Delamination	Interface defect	Improve bonding process
Taper Failure	Aggressive transition	Optimize taper geometry
Wrinkling	Manufacturing/layup defect	Process control

---

23. Design Allowables: Do Not Use Datasheet Values Directly

One of the most important procurement principles is:

Supplier nominal properties are not automatically design allowable values.

A nominal datasheet might state:

• Density: 80 kg/m³
• Shear strength: X MPa
• Shear modulus: Y MPa
• Compression strength: Z MPa

But engineering design must consider:

• Manufacturing variation
• Environmental conditioning
• Temperature
• Moisture
• Aging
• Test scatter
• Thickness
• Direction
• Machining
• Bonding
• Safety factors
• Structural configuration

A simplified qualification chain is:

Nominal Property

→ Test Data

→ Statistical Distribution

→ Environmental Knockdown

→ Manufacturing Knockdown

→ Design Allowable

→ Structural Safety Factor

---

24. Recommended Design Allowables Database

A serious blade material program should build a database like this:

Property	Dry	Conditioned	Low Temp	High Temp	A-Basis/B-Basis*
Density	✓	✓	—	—	✓
Compression Strength	✓	✓	✓	✓	✓
Shear Strength	✓	✓	✓	✓	✓
Shear Modulus	✓	✓	✓	✓	✓
Flatwise Tensile	✓	✓	✓	✓	✓
Water Absorption	—	✓	—	—	✓
Dimensional Stability	—	✓	✓	✓	✓

*Statistical allowable basis should follow the applicable project qualification methodology.

This database is far more useful than a simple product catalog.

---

25. Manufacturing Quality Control for PVC Foam Core

For a wind blade supplier, incoming and outgoing QC should include:

Raw Material QC

• Polymer consistency
• Density
• Cell structure
• Thickness
• Dimensional tolerance

Process QC

• Temperature
• Expansion ratio
• Cutting accuracy
• Surface preparation
• Machining depth
• Groove geometry
• Perforation spacing

Finished Core QC

• Density mapping
• Thickness mapping
• Visual inspection
• Compression testing
• Shear testing
• Dimensional inspection
• Surface cleanliness
• Packaging condition

---

26. Recommended Density Mapping

Instead of measuring one sample per production batch, a large blade-core program can use a statistical sampling plan.

Example:

Inspection Zone	Suggested Check
Sheet center	Density
Sheet edge	Density
Four corners	Thickness
Machined region	Geometry
Groove region	Visual/section inspection
Perforated region	Hole accuracy
Taper region	Thickness transition
Bonding surface	Surface quality

This helps identify localized manufacturing variation that a single average density measurement may hide.

---

27. Procurement Scorecard for Wind Turbine PVC Foam Core

When comparing suppliers, the following scoring system is more useful than comparing price alone.

Procurement Factor	Weight
Mechanical Properties	20%
Density Consistency	15%
Machining Capability	15%
Thickness Tolerance	10%
Surface Quality	10%
Fatigue/Structural Data	10%
Resin Compatibility	5%
Quality Documentation	5%
Production Capacity	5%
Delivery Reliability	5%
Total	100%

A supplier with a slightly higher material price may still be the better choice if it reduces:

• Scrap
• Rework
• Infusion defects
• Core replacement
• Bonding failures
• Production downtime
• Structural qualification risk

---

28. The Total Cost of PVC Foam Core

The purchasing price should not be calculated simply as:

[
\text{Cost} = \text{Price per m}^3 \times \text{Volume}
]

A more useful model is:

[
C_{total} =
C_{material}
+
C_{machining}
+
C_{waste}
+
C_{transport}
+
C_{inspection}
+
C_{rework}
+
C_{qualification}
+
C_{failure\ risk}
]

For wind turbine blades, the final terms can be much more significant than a small difference in foam price.

---

29. RFQ Specification for Wind Turbine PVC Foam Core

A professional RFQ should contain more than:

PVC Foam Core, 80 kg/m³, 20 mm.

A stronger specification would include:

Material

PVC Foam Core

Density

Target density + allowable tolerance

Thickness

Nominal thickness + tolerance

Mechanical Properties

• Compression strength
• Compression modulus
• Shear strength
• Shear modulus
• Tensile properties where required

Manufacturing

• Flat sheet
• CNC contour
• Taper
• Groove
• Perforation
• Slot
• Custom geometry

Surface

• Raw
• Sanded
• Treated
• Compatible with selected resin system

Quality

• Batch traceability
• Inspection report
• Material test report
• Density report
• Dimensional report

Packaging

• Moisture protection
• Compression protection
• Identification label
• Batch number

---

30. Supplier Questions That Reveal Real Manufacturing Capability

Instead of asking only:

What is your price?

Ask:

Question 1

What is the density tolerance within one sheet and between production batches?

Question 2

Can you provide C273 shear data for the actual production grade?

Question 3

Can you provide compression data under controlled conditioning?

Question 4

Can you supply CNC-machined, grooved and perforated PVC Foam Core?

Question 5

How do you control groove depth and perforation accuracy?

Question 6

Can you supply tapered core sections?

Question 7

Can you provide batch traceability?

Question 8

What resin systems have been validated with the core?

Question 9

How do you control surface cleanliness and bonding quality?

Question 10

Can you provide representative production samples for qualification?

The quality of the answers often reveals more than the product brochure.

---

31. Supplier Red Flags

Procurement teams should be cautious when a supplier:

• Provides only density information
• Cannot provide mechanical test methods
• Mixes values from different grades
• Does not identify test conditions
• Cannot explain density tolerance
• Cannot provide batch traceability
• Has no machining QC
• Cannot control taper geometry
• Cannot provide samples from production
• Claims universal performance for all applications
• Uses laboratory prototype data as mass-production data

A technically strong supplier should be able to explain not only what the material can do, but also how that performance is controlled in production.

---

32. Recommended Three-Stage Qualification Program

Stage 1 — Material Qualification

Test:

• Density
• Thickness
• Compression
• Shear
• Dimensional stability
• Water absorption
• Thermal conditioning

Objective:

Confirm the raw PVC Foam Core grade.

---

Stage 2 — Process Qualification

Manufacture representative sandwich specimens.

Evaluate:

• Infusion
• Resin distribution
• Bonding
• Groove filling
• Perforation
• Surface preparation
• Cure behavior

Objective:

Confirm that the core works in the actual manufacturing process.

---

Stage 3 — Structural Qualification

Test representative blade sections.

Evaluate:

• Static bending
• Compression
• Shear
• Fatigue
• Damage tolerance
• Environmental conditioning
• Failure propagation

Objective:

Confirm structural performance.

---

33. Example Material Selection Matrix

For a conceptual blade zoning program:

Blade Zone	Suggested Density Strategy	Main Reason
Tip	Low density	Weight reduction
Outer Shell	Low/medium density	Balance stiffness and mass
Mid-Shell	Medium density	Increased load
Trailing Edge	Medium/high density	Buckling control
Shear Web	Medium/high density	Shear and compression
Root Transition	High density	Concentrated loads
Insert Area	Very high density/local reinforcement	Fastener/load transfer
Taper Zone	Optimized density + geometry	Load transition

The actual density map must be determined from structural analysis and validation testing.

---

34. Why “High Density Everywhere” Is Usually Not the Best Strategy

Increasing density can improve mechanical properties, but it also increases:

• Blade mass
• Material cost
• Handling load
• Transportation cost
• Manufacturing effort

More blade mass can also affect the structural system beyond the core itself.

Therefore, the engineering question should be:

Where does additional core density generate meaningful structural benefit?

If a 130 kg/m³ core is used in a region where a 60 kg/m³ core already satisfies the required allowable, the additional mass may have little engineering value.

---

35. Why “Lowest Density Everywhere” Is Also Risky

The opposite strategy is equally problematic.

Very low-density core can produce:

• Lower shear resistance
• Lower compression strength
• Greater local deformation
• Higher buckling sensitivity
• Greater damage sensitivity
• Reduced structural margin

A lightweight blade is useful only when it remains structurally reliable.

The correct target is therefore:

Minimum mass subject to structural, fatigue, manufacturing and certification constraints.

---

36. Wind Blade PVC Foam Core Decision Tree

Step 1

What is the local load?

↓

Step 2

Is core shear critical?

Yes → evaluate higher-density or thicker core.

No → continue.

↓

Step 3

Is local compression or buckling critical?

Yes → evaluate higher-density core or reinforcement.

No → continue.

↓

Step 4

Does the region require complex machining?

Yes → qualify machined-core configuration.

↓

Step 5

Is fatigue critical?

Yes → perform cyclic qualification.

↓

Step 6

Is environmental exposure significant?

Yes → perform conditioned testing.

↓

Step 7

Can the supplier maintain production consistency?

No → do not approve for structural production.

---

37. Recommended Technical Data Sheet Structure

For a professional PVC Foam Core product intended for wind turbine blades, the supplier’s technical data sheet should ideally contain:

Section	Required Information
Product	PVC Foam Core
Grade	Specific grade
Density	Nominal + tolerance
Thickness	Range + tolerance
Cell Structure	Closed-cell description
Compression	Strength + modulus
Shear	Strength + modulus
Water Absorption	Test value
Thermal	Service/processing range
Machining	Groove/perforation capability
Surface	Bonding preparation
Resin	Compatibility
Quality	Inspection system
Traceability	Batch identification
Packaging	Protection method
Testing	Standard and conditions

---

38. Engineering Perspective: What Should Buyers Actually Compare?

When comparing three PVC Foam Core suppliers, do not create a table containing only:

Supplier	Density	Price
A	80 kg/m³	$X
B	80 kg/m³	$Y
C	80 kg/m³	$Z

Instead compare:

Parameter	Supplier A	Supplier B	Supplier C
Density Tolerance
Shear Strength
Shear Modulus
Compression
Water Absorption
Test Standard
Machining Accuracy
Taper Capability
Batch Traceability
Production Capacity
QC Documentation
Sample Qualification
Total Cost

This changes procurement from price comparison into engineering risk comparison.

---

39. Final Engineering Checklist

Before approving a PVC Foam Core for wind turbine blade production, verify:

Material

• Correct density
• Controlled density tolerance
• Correct thickness
• Stable cell structure
• Mechanical properties verified

Structural

• Core shear qualified
• Compression qualified
• Sandwich stiffness evaluated
• Skin-core bonding qualified
• Fatigue requirement defined

Manufacturing

• Resin compatibility confirmed
• Infusion process validated
• Groove design validated
• Perforation validated
• CNC tolerance controlled
• Taper geometry controlled

Quality

• Batch traceability
• Inspection records
• Material certificates
• Test reports
• Production samples

Procurement

• Annual capacity confirmed
• Lead time confirmed
• Packaging confirmed
• Replacement policy defined
• Technical support available
• Total cost evaluated

---

40. Conclusion

PVC Foam Core is not simply a lightweight filler inside a wind turbine blade.

It is a structural component that contributes to:

• Sandwich stiffness
• Core shear transfer
• Compression resistance
• Buckling stability
• Load distribution
• Damage propagation
• Fatigue behavior
• Manufacturing quality

For this reason, the best PVC Foam Core is not necessarily the one with the highest density, lowest price or lowest weight.

The better engineering solution is to establish a density-performance-manufacturing relationship for each blade region.

A practical selection philosophy is:

Low Density → Weight Reduction

Higher Density → Local Structural Capacity

Greater Thickness → Increased Sandwich Stiffness

Controlled Machining → Resin Flow + Geometry

Reliable Bonding → Structural Load Transfer

Fatigue Qualification → Long-Term Durability

Production Consistency → Repeatable Blade Quality

Recent experimental work reinforces this system-level approach. Wind turbine blade sandwich performance can be strongly influenced by foam density, core machining, taper geometry, resin-filled grooves and skin-core interface behavior.

For procurement teams, the most important lesson is therefore:

Do not purchase PVC Foam Core only by density and price. Purchase a qualified structural core system with controlled mechanical properties, machining accuracy, bonding compatibility, traceability and repeatable production quality.

That approach provides a much stronger basis for designing lighter, more durable and more manufacturable wind turbine blades.
