A Failure Analysis, Root Cause and Corrective Action Guide for Composite Engineers and Buyers

1. Introduction: When a Sandwich Panel Fails, the Core Is Not Always the Cause

PVC Foam Core Sandwich Panels are widely used in marine structures, wind turbine blades, transportation panels, building systems and industrial composite structures.

Their fundamental advantage is simple:

Lightweight Core + Stiff Face Sheets = High Structural Efficiency

However, a sandwich structure is not simply a face sheet bonded to a piece of foam.

Its actual performance depends on the interaction between:

• Face sheet stiffness
• PVC Foam Core density
• Core thickness
• Core shear strength
• Core shear modulus
• Core compression strength
• Adhesive or resin system
• Skin-core interface
• Core machining
• Laminate quality
• Manufacturing process
• Environmental conditioning
• Structural geometry
• Applied load

ASTM standards recognize this system-level relationship. ASTM C273/C273M addresses core shear properties, while ASTM C393/C393M evaluates sandwich construction behavior and can be used for core shear or core-to-facing shear assessment. ASTM C365/C365M addresses flatwise compression of sandwich cores.

Therefore, when a PVC Foam Core Sandwich Panel fails, the correct engineering question is not simply:

“Is the PVC Foam Core strong enough?”

The better question is:

“Which component or interface reached its governing failure mode first, and why?”

This article uses a failure-analysis framework to examine the most important failure modes in PVC Foam Core Sandwich Panels and translates those findings into practical material-selection, manufacturing-control and procurement decisions.

---

2. The Five-Level Failure Hierarchy

A sandwich panel can fail at several different structural levels.

Level	Failure Location	Typical Failure
Level 1	Face Sheet	Cracking, yielding, fiber failure
Level 2	PVC Foam Core	Shear, crushing, cracking
Level 3	Skin-Core Interface	Debonding, delamination
Level 4	Geometry	Buckling, indentation, local instability
Level 5	Manufacturing Defect	Void, resin-rich area, machining defect

The same external symptom can have completely different root causes.

For example, a visible crack on the face sheet may actually originate from:

• core shear deformation,
• local indentation,
• skin-core debonding,
• insufficient core thickness,
• poor adhesive bonding,
• or local manufacturing defects.

This is why failure analysis must begin with the failure sequence, not only the final visible damage.

---

3. The Seven Major Failure Modes

For PVC Foam Core Sandwich Panels, the most important failure modes can be organized as follows:

1. Core shear failure
2. Core compression/crushing
3. Skin-core debonding
4. Face-sheet wrinkling
5. Local indentation
6. Global buckling
7. Progressive fatigue damage

These failure modes can occur independently or interact with one another.

A typical failure sequence may look like:

Local Load

↓

Core Deformation

↓

Interface Stress Concentration

↓

Debonding

↓

Core Shear

↓

Face-Sheet Instability

↓

Progressive Structural Failure

The actual sequence depends on the sandwich configuration.

---

4. Failure Mode 1 — PVC Foam Core Shear Failure

Core shear is one of the most important failure mechanisms in sandwich construction.

The core maintains the distance between the face sheets and transfers transverse shear.

A simplified shear relationship is:

[
\tau = \frac{V}{A_c}
]

where:

• ( \tau ) = core shear stress
• ( V ) = applied shear force
• ( A_c ) = effective core shear area

When the applied shear stress exceeds the allowable core shear strength, the core can fail.

Typical Visual Appearance

Core shear may produce:

• diagonal cracks,
• localized core tearing,
• permanent deformation,
• interface separation,
• crushed foam around the failure zone.

Typical Root Causes

Root Cause	Risk
Core density too low	High
Core thickness insufficient	Medium–High
Excessive transverse load	High
Poor core quality	High
Excessive machining	Medium
Local load concentration	High
Environmental degradation	Application dependent

ASTM C273/C273M is specifically intended to determine core shear strength and shear modulus.

---

5. Core Shear Strength vs Core Shear Modulus

These properties are often incorrectly treated as the same thing.

They are not.

Core Shear Strength

Describes the stress level associated with shear failure.

Core Shear Modulus

Describes the core’s resistance to shear deformation.

Property	Primary Engineering Meaning
Shear Strength	Ultimate shear capacity
Shear Modulus	Shear stiffness
High Strength	Delays catastrophic failure
High Modulus	Reduces deformation
Fatigue Performance	Depends on both + structure

A panel can therefore have acceptable ultimate shear strength but excessive deformation because the core shear modulus is insufficient.

This distinction becomes particularly important in:

• long panels,
• wind turbine blades,
• marine decks,
• transportation floors,
• large architectural panels.

---

6. Failure Mode 2 — Core Crushing

Core crushing is different from core shear.

It generally occurs when the PVC Foam Core experiences excessive compressive stress.

Typical locations include:

• beneath concentrated loads,
• under fasteners,
• beneath supports,
• around inserts,
• under narrow load pads,
• at panel edges,
• around structural transitions.

ASTM C365/C365M is designed to determine flatwise compressive properties of sandwich cores, including compressive strength and modulus in the direction normal to the face sheets.

Simplified Crushing Model

[
\sigma_c = \frac{P}{A}
]

where:

• ( \sigma_c ) = local compressive stress
• ( P ) = applied load
• ( A ) = effective load-bearing area

If the actual load area becomes very small, local stress can become much greater than the average panel stress.

---

7. Why Low-Density PVC Foam Can Be Vulnerable to Local Crushing

A low-density core provides excellent weight efficiency.

But its lower compressive capacity can become a limitation under concentrated loads.

Load Type	Low-Density Core	Medium-Density Core	High-Density Core
Distributed Load	Excellent	Excellent	Excellent
Point Load	Limited	Good	Very Good
Fastener Load	Limited	Good	Very Good
Insert Area	Usually requires reinforcement	Good	Excellent
Floor Loading	Application dependent	Good	Very Good
Heavy Equipment Support	Limited	Medium	High

This leads to a fundamental design rule:

The core density should be selected according to the local load condition, not only the average panel load.

---

8. Failure Mode 3 — Skin-Core Debonding

Skin-core debonding is one of the most dangerous failure modes because the foam itself may remain apparently intact while the structural sandwich function has already been compromised.

The interface may fail because of:

• inadequate surface preparation,
• insufficient resin,
• excessive resin,
• adhesive voids,
• contamination,
• poor cure,
• excessive local stress,
• incompatible adhesive,
• core surface damage,
• core machining defects.

ASTM C393/C393M specifically notes that measured sandwich shear performance is affected by the facing material, core, adhesive, fabrication method, core geometry, density, adhesive thickness, specimen preparation, conditioning, environment and adhesive void content.

This is an important reason why a supplier’s bare PVC Foam Core shear strength cannot be treated as equivalent to the finished sandwich’s interface strength.

---

9. Why Debonding Is Particularly Dangerous

Consider two panels.

Panel A

Core shear strength = high

But:

Skin-core bond = poor

Panel B

Core shear strength = medium

But:

Skin-core bond = excellent

Under certain loading conditions, Panel A can fail earlier because the interface fails before the core reaches its nominal shear strength.

Therefore:

[
\text{Panel Strength} \neq \text{Core Strength Alone}
]

A more realistic model is:

[
P_{failure} =
\min(P_{face},P_{core},P_{interface},P_{buckling},P_{indentation})
]

The weakest governing mode determines the structural limit.

---

10. Failure Mode 4 — Face-Sheet Wrinkling

Face-sheet wrinkling is a local instability phenomenon.

It may occur when the face sheet is in compression and the supporting core does not provide sufficient stability.

Typical contributing factors include:

• insufficient core modulus,
• low core density,
• thin face sheet,
• inadequate bonding,
• local geometric imperfections,
• excessive compressive stress.

A sandwich panel may therefore have adequate core shear strength but still fail through face wrinkling.

Engineering Response

Possible solutions include:

• increasing core thickness,
• increasing core modulus,
• increasing face-sheet thickness,
• modifying laminate architecture,
• improving bonding,
• reducing local unsupported length.

---

11. Failure Mode 5 — Local Indentation

Indentation is particularly important when the panel is subjected to concentrated loading.

Typical examples:

• furniture panels,
• vehicle floors,
• marine decks,
• equipment platforms,
• cabinet panels,
• transportation flooring.

The failure may appear as a small depression, but the underlying core can be significantly damaged.

Typical Indentation Sequence

Point Load

↓

Face Sheet Local Bending

↓

Core Compression

↓

Plastic/Crushed Core Zone

↓

Permanent Dent

↓

Potential Delamination

---

12. Failure Mode 6 — Global Buckling

Global buckling is fundamentally different from core crushing.

The entire panel or a large structural section becomes unstable.

Typical causes include:

• excessive panel dimensions,
• insufficient sandwich thickness,
• insufficient face-sheet stiffness,
• inadequate edge support,
• compressive loading,
• geometric imperfections.

A simple engineering representation is:

[
P_{cr} \propto \frac{EI}{L^2}
]

where:

• (P_{cr}) = critical buckling load
• (EI) = structural bending stiffness
• (L) = characteristic unsupported length

Increasing sandwich thickness can significantly improve structural stiffness because it increases the distance between the face sheets.

---

13. Failure Mode 7 — Fatigue Damage

Static strength does not automatically indicate fatigue performance.

A sandwich panel used in:

• wind turbine blades,
• marine vessels,
• vehicles,
• railway structures,
• aircraft-related applications,

may experience millions of loading cycles.

A panel can therefore survive a static test but gradually accumulate:

• microcracks,
• interface damage,
• core shear deformation,
• debonding,
• delamination,
• local buckling.

Simplified Fatigue Progression

Stage	Condition
1	Initial manufacturing condition
2	Micro-damage
3	Local stiffness reduction
4	Interface damage
5	Core cracking
6	Debonding propagation
7	Structural instability

Fatigue must therefore be considered separately from static qualification.

---

14. Failure Mode Map

A useful engineering failure map is:

Failure Mode	Primary Trigger	Secondary Trigger	Main Test
Core Shear	High transverse load	Low density	ASTM C273
Core Crushing	Point load	Low compression strength	ASTM C365
Debonding	Poor interface	Voids/contamination	ASTM C393/C297
Wrinkling	Face compression	Low core modulus	Sandwich flexure
Indentation	Local load	Thin face/core	Compression/local load
Buckling	Global compression	Low stiffness	Structural test
Fatigue	Cyclic load	Defects	Fatigue testing

This table is useful during both engineering design and supplier qualification.

---

15. Real Engineering Case — Wind Turbine Blade Sandwich Failure

Research on composite sandwich structures representative of wind turbine blades has demonstrated that core machining configuration and foam density can change both the strength and failure mode.

One study compared plain, double-grooved/perforated and grooved/perforated/cut configurations. Failure behavior changed from global buckling toward combinations of core shear and skin/core debonding, with the machining configuration influencing the final failure mechanism.

This is important because it demonstrates:

Machining is not merely a manufacturing detail. It can become a structural variable.

For a wind turbine blade supplier, the specification should therefore include not only:

PVC Foam Core Density

but also:

Groove + Perforation + Cutting Configuration

---

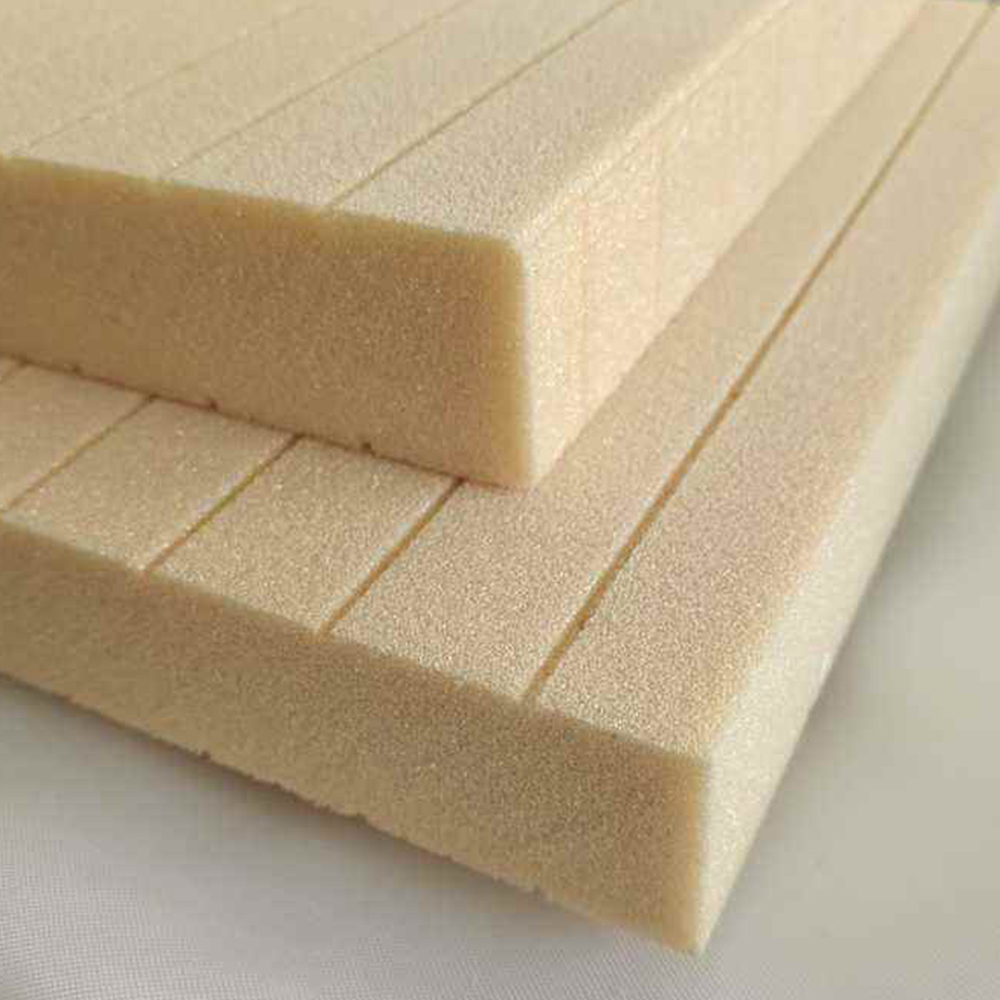

16. Real Engineering Case — Resin-Filled Groove Defects

Fractographic investigation of sandwich panels from a composite wind turbine blade identified partially resin-filled grooves that created large voids within the foam.

The study associated these defects with crack migration and skin/core debonding.

This provides an important manufacturing lesson.

A groove is designed to improve:

• resin flow,
• vacuum infusion,
• core conformity.

But if the groove geometry or infusion process is poorly controlled, it can become a structural defect.

Therefore:

The objective is not maximum resin flow. The objective is controlled resin flow without creating excessive resin-rich or void-containing regions.

---

17. Real Engineering Case — Tapered PVC Foam Core

Tapered sandwich structures are commonly used in wind turbine blade transitions.

Recent experimental and numerical research found that taper slope can significantly influence:

• static strength,
• fatigue life,
• failure mode,
• crack propagation.

The study evaluated 11°, 18° and 45° taper configurations and found substantial differences in structural response.

This reinforces a broader principle:

Geometry is part of material performance.

A PVC Foam Core supplier capable of producing a nominally correct density but poorly controlled taper geometry may still create a structurally inferior component.

---

18. Root Cause Analysis: The 5M Framework

When a sandwich panel fails, a useful root-cause framework is the 5M method.

Material

• Incorrect density
• Density variation
• Poor cell structure
• Contamination
• Moisture/environmental degradation

Machine

• Incorrect CNC settings
• Cutting damage
• Groove depth variation
• Perforation inconsistency

Method

• Incorrect bonding
• Insufficient resin
• Excess resin
• Incorrect vacuum pressure
• Incorrect curing

Man

• Handling damage
• Incorrect assembly
• Incorrect inspection
• Installation errors

Measurement

• Inadequate testing
• Incorrect sampling
• Wrong test method
• Insufficient traceability

This method prevents engineers from automatically blaming the foam material.

---

19. Material Root Cause vs Process Root Cause

A common mistake is:

Panel Failed → Foam Is Weak

But the actual chain could be:

Panel Failed

→

Interface Debonding

→

Void in Adhesive

→

Insufficient Resin Flow

→

Incorrect Groove Geometry

→

Machining Variation

→

Process Control Failure

In this scenario, changing from 80 kg/m³ PVC Foam Core to 100 kg/m³ PVC Foam Core may not solve the real problem.

This is why failure analysis should identify the first initiating defect.

---

20. Diagnostic Matrix for Failed PVC Foam Core Panels

Observation	Possible Root Cause	Recommended Investigation
Diagonal core crack	Core shear	C273 + microscopy
Vertical crushing	Compression	C365
Clean interface separation	Debonding	Interface inspection
Resin-rich groove	Poor infusion	Cross-section
Large internal void	Vacuum/resin problem	CT or sectioning
Face wrinkle	Local instability	Laminate/core analysis
Permanent dent	Indentation	Local compression
Edge delamination	Edge sealing/bonding	Edge inspection
Repeated fatigue cracks	Cyclic damage	Fatigue analysis
Uneven panel stiffness	Density/thickness variation	Mapping

---

21. Non-Destructive Inspection Strategy

For critical composite sandwich panels, inspection should not stop at visual examination.

Possible techniques include:

• Visual inspection
• Tap testing
• Ultrasonic inspection
• Thermography
• X-ray imaging
• X-ray computed tomography
• Dimensional measurement
• Density mapping

The appropriate technique depends on:

• panel thickness,
• material system,
• defect type,
• production volume,
• criticality.

For example, internal voids in a grooved PVC Foam Core may not always be visible from the outside.

---

22. Recommended Failure Investigation Sequence

When a panel fails, follow a controlled sequence.

Step 1 — Preserve the Failure Area

Do not immediately cut or repair the damaged area.

Step 2 — Photograph the Failure

Record:

• location,
• direction,
• dimensions,
• surrounding geometry.

Step 3 — Identify the Failure Mode

Determine whether it is:

• core failure,
• interface failure,
• face failure,
• buckling,
• indentation.

Step 4 — Section the Structure

Inspect the internal failure path.

Step 5 — Compare With Manufacturing Records

Check:

• core batch,
• density,
• thickness,
• machining,
• resin,
• adhesive,
• cure cycle.

Step 6 — Repeat Targeted Testing

Do not simply repeat the same test.

Choose the test that investigates the suspected root cause.

---

23. Testing Strategy for Failure Analysis

Investigation Objective	Recommended Test
Core shear	ASTM C273/C273M
Sandwich shear	ASTM C393/C393M
Core compression	ASTM C365/C365M
Facesheet properties	ASTM D7249/D7249M
Sandwich stiffness	ASTM D7250/D7250M
Dimensional stability	ASTM D6772/D6772M
Interface tensile behavior	ASTM C297/C297M
Fatigue	Application-specific cyclic test
Environmental durability	Conditioned mechanical testing

ASTM’s current composite standards listing includes C273/C273M, C393/C393M, C365/C365M, D7249/D7249M, D7250/D7250M and D6772/D6772M among the relevant sandwich construction standards.

---

24. Why ASTM C273 and C393 Should Not Be Confused

This is a frequent procurement problem.

ASTM C273

Primarily characterizes:

Core shear properties

ASTM C393

Evaluates:

Sandwich construction under beam flexure

and can provide information related to:

• core shear,
• core-to-facing shear,
• sandwich stiffness,
• load-deflection behavior.

ASTM specifically states that C273 is preferred for core shear strength and modulus when bare core is available, while C393 is useful for sandwich-level behavior and bonded panel quality control.

Therefore, a supplier saying:

“Our PVC Foam Core passed C393”

does not necessarily provide the same information as a properly documented C273 bare-core result.

---

25. Engineering Acceptance Criteria

A useful acceptance system should have three levels.

Level A — Material Acceptance

Check:

• Density
• Thickness
• Appearance
• Compression
• Shear
• Dimensional tolerance

Level B — Process Acceptance

Check:

• Machining
• Resin compatibility
• Bonding
• Infusion
• Cure

Level C — Structural Acceptance

Check:

• Static strength
• Stiffness
• Fatigue
• Environmental conditioning
• Damage tolerance

A material should not be approved for structural production simply because Level A has passed.

---

26. Procurement Decision: What Should Be Specified?

A weak purchase specification might say:

PVC Foam Core, 80 kg/m³, 20 mm.

A stronger engineering specification should include:

Material

PVC Foam Core

Density

Target + tolerance

Thickness

Nominal + tolerance

Mechanical

• Compression strength
• Compression modulus
• Shear strength
• Shear modulus

Machining

• Groove depth
• Groove spacing
• Perforation diameter
• Perforation spacing
• CNC contour tolerance
• Taper angle

Surface

• Surface condition
• Bonding compatibility
• Cleanliness

Quality

• Batch number
• Test report
• Inspection report
• Traceability

---

27. Supplier Evaluation Based on Failure Risk

A more advanced supplier scorecard can be structured around failure prevention.

Category	Weight
Core Mechanical Consistency	15%
Density/Thickness Control	10%
Machining Accuracy	15%
Bonding Surface Quality	10%
Manufacturing Traceability	10%
Structural Test Data	10%
Fatigue Data	10%
Process Support	5%
Production Capacity	5%
Corrective Action Capability	10%
Total	100%

The addition of Corrective Action Capability is important.

A good supplier should be able to investigate a failure rather than simply replace the material.

---

28. What a Strong Supplier Should Provide After a Failure

When a batch-related problem occurs, the supplier should ideally provide:

1. Batch identification
2. Production records
3. Density data
4. Thickness records
5. Mechanical test results
6. Machining records
7. Raw material traceability
8. Root-cause analysis
9. Corrective action
10. Preventive action

This is essentially a supplier-side CAPA system:

Corrective Action + Preventive Action

For large composite programs, this capability can be more valuable than a small difference in unit price.

---

29. Failure Prevention Through Design

Failure analysis should eventually feed back into design.

For example:

Problem

Core shear failure

Corrective Design

Increase:

• density,
• thickness,
• shear area,
• or local reinforcement.

---

Problem

Core crushing

Corrective Design

Increase:

• local density,
• load-bearing area,
• insert reinforcement.

---

Problem

Debonding

Corrective Design

Improve:

• surface preparation,
• adhesive,
• resin flow,
• cure,
• interface geometry.

---

Problem

Buckling

Corrective Design

Increase:

• sandwich thickness,
• face-sheet stiffness,
• core modulus,
• structural support.

---

30. Failure Prevention Through Manufacturing

Many sandwich failures can be prevented before the final structural test.

Manufacturing Stage	Key Control
Core cutting	Dimensional accuracy
CNC machining	Groove/taper tolerance
Cleaning	Surface contamination
Layup	Core positioning
Resin infusion	Flow distribution
Vacuum bagging	Leak control
Bonding	Adhesive thickness
Curing	Temperature/time
Demolding	Core damage
Final inspection	Defect detection

The engineering objective should be:

Control the process that creates the structure, not merely inspect the structure after it has been created.

---

31. A Practical Failure Prevention Matrix

Failure	Material Solution	Process Solution	Design Solution
Core Shear	Higher shear grade	Avoid core damage	Increase thickness/density
Crushing	Higher compression grade	Improve handling	Local reinforcement
Debonding	Better bonding surface	Improve infusion	Increase interface area
Wrinkling	Higher modulus core	Better bonding	Increase skin/core support
Indentation	Higher density	Improve load distribution	Add local reinforcement
Buckling	Higher stiffness	Better geometry	Increase sandwich depth
Fatigue	Qualified grade	Reduce defects	Optimize load path

---

32. The “Wrong Material” vs “Wrong Application” Problem

PVC Foam Core is available in multiple densities and structural grades.

A failure does not necessarily mean that PVC Foam Core is unsuitable.

It may mean that:

• the density was too low,
• the thickness was insufficient,
• the machining pattern was inappropriate,
• the bonding process was poor,
• the load was incorrectly estimated,
• or the panel geometry was inadequate.

Therefore:

Material Failure

and

Material Selection Failure

are different concepts.

---

33. Procurement Red Flags Related to Failure Risk

Buyers should be cautious if a supplier:

• provides only density data;
• provides no mechanical test standard;
• provides no test direction;
• provides no conditioning information;
• cannot explain density tolerance;
• cannot control groove depth;
• cannot control perforation geometry;
• cannot supply tapered sections;
• cannot provide batch traceability;
• has no failure-analysis capability;
• cannot provide production samples;
• cannot distinguish core shear from interface failure.

A technically mature supplier should be able to discuss failure modes, not just product specifications.

---

34. Recommended Qualification Program Before Mass Production

A practical program can be organized into five stages.

Stage 1 — Raw Core

Test:

• Density
• Thickness
• Compression
• Shear

Stage 2 — Machined Core

Test:

• Groove geometry
• Perforation
• Taper
• Dimensional tolerance

Stage 3 — Small Sandwich Panel

Test:

• Bonding
• Flexure
• Core shear
• Interface failure

Stage 4 — Representative Component

Test:

• Static load
• Local load
• Compression
• Damage tolerance

Stage 5 — Full Structural Validation

Test:

• Fatigue
• Environmental exposure
• Full-scale structural loading

This progressive approach reduces qualification cost while increasing confidence.

---

35. Engineering Decision Matrix

When a failure occurs, engineers can use the following decision sequence.

Question 1

Did the PVC Foam Core itself fail?

Yes → investigate density, shear and compression.

No → continue.

Question 2

Did the interface fail?

Yes → investigate bonding and resin.

No → continue.

Question 3

Did the face sheet fail?

Yes → investigate laminate design.

No → continue.

Question 4

Did the structure buckle?

Yes → investigate stiffness and geometry.

No → continue.

Question 5

Did manufacturing defects initiate the failure?

Yes → implement process correction.

This prevents premature material substitution.

---

36. Final Procurement Checklist

Before approving a PVC Foam Core supplier for a structural application, buyers should confirm:

Material

• Density specification
• Density tolerance
• Thickness tolerance
• Core shear data
• Compression data
• Dimensional stability

Manufacturing

• Groove capability
• Perforation capability
• CNC cutting
• Taper machining
• Surface preparation
• Dimensional inspection

Structural

• Sandwich test data
• Interface data
• Fatigue information
• Environmental data
• Representative samples

Quality

• Batch traceability
• Inspection records
• Test reports
• Corrective-action system
• Production consistency

Commercial

• Production capacity
• Lead time
• Packaging
• Technical support
• Total cost of ownership

---

37. Conclusion: Failure Analysis Should Change How PVC Foam Core Is Purchased

The most important lesson from PVC Foam Core Sandwich Panel failure analysis is that failure rarely has only one variable.

Core density matters.

Core thickness matters.

Core shear strength matters.

Core compression strength matters.

But so do:

• machining,
• resin distribution,
• adhesive thickness,
• interface quality,
• face-sheet design,
• structural geometry,
• environmental conditions,
• manufacturing consistency.

Research on wind turbine blade sandwich structures demonstrates that core machining configuration can change both strength and failure mode, while studies of tapered PVC Foam Core structures show that transition geometry can significantly influence crack propagation, static strength and fatigue behavior.

The correct engineering philosophy is therefore:

Do not ask only whether the PVC Foam Core is strong enough. Ask which failure mode is expected to govern, how that failure will initiate, how it will propagate, and how the supplier controls the variables that influence it.

For engineers, this creates a more reliable design methodology.

For manufacturers, it creates a stronger quality-control system.

For procurement teams, it changes supplier evaluation from:

Price + Density

to:

Mechanical Performance + Manufacturing Consistency + Failure Prevention + Traceability + Total Cost of Ownership

That is the more appropriate framework for selecting PVC Foam Core for demanding composite sandwich structures.
