A Structural Optimization and Lightweight Design Report for Composite Sandwich Panels

1. Introduction: Thickness and Density Are Two Different Design Levers

When engineers select PVC Foam Core for a composite sandwich panel, two questions appear repeatedly:

Should we increase the core density?

or:

Should we increase the core thickness?

These two changes can both improve structural performance, but they do so through different mechanisms.

Increasing density primarily changes the intrinsic mechanical properties of the core, including:

• Compression strength
• Shear strength
• Shear modulus
• Compression modulus
• Local load capacity

Increasing thickness changes the geometry of the sandwich structure, especially the separation between the face sheets.

This distinction is fundamental.

A higher-density PVC Foam Core may provide greater local strength, while a thicker lower-density core may provide substantially greater sandwich bending stiffness with less weight penalty.

Therefore, the engineering optimization problem is not:

“Which PVC Foam Core density is strongest?”

It is:

“What combination of core density and thickness provides the required stiffness, strength, weight and manufacturing performance?”

ASTM C273/C273M is commonly used to characterize core shear strength and shear modulus, while ASTM C393/C393M evaluates the behavior of sandwich constructions under flexure. ASTM C365/C365M addresses flatwise compression properties of sandwich cores. (store.astm.org)

---

2. The Basic Sandwich Structure

A simplified sandwich panel consists of:

Face Sheet

↓

PVC Foam Core

↓

Face Sheet

The face sheets carry most of the tensile and compressive bending stresses.

The PVC Foam Core performs several important functions:

• Maintains face-sheet separation
• Transfers transverse shear
• Supports the face sheets
• Resists local compression
• Stabilizes the skins against buckling
• Contributes to overall panel stiffness

The structural efficiency comes largely from the distance between the face sheets.

This is why core thickness can have such a strong effect on bending stiffness.

---

3. Why Core Thickness Has a Large Effect on Bending Stiffness

For a simplified symmetric sandwich beam, bending stiffness is approximately related to:

[
D \approx 2E_f t_f \left(\frac{h}{2}\right)^2
]

where:

• (D) = bending stiffness
• (E_f) = face-sheet modulus
• (t_f) = face-sheet thickness
• (h) = distance between the face-sheet centroids

Because the distance between the face sheets is squared, increasing the sandwich depth can produce a large increase in bending stiffness.

This creates an important engineering principle:

Core thickness is primarily a geometric stiffness lever.

Density, in contrast, is primarily a material-property lever.

---

4. Thickness vs Density: The Fundamental Difference

Design Change	Main Effect	Typical Benefit
Increase Density	Higher core properties	Strength and local load capacity
Increase Thickness	Greater skin separation	Bending stiffness
Increase Face Sheet	Higher skin capacity	Tensile/compressive strength
Increase Adhesive Quality	Better interface	Load transfer
Add Local Reinforcement	Local capacity	Inserts/load zones

The correct solution depends on the governing failure mode.

---

5. Engineering Density Framework

The following density ranges can be used as a preliminary selection framework.

They are not universal specifications; actual mechanical values must be confirmed for the selected PVC Foam Core grade.

Density	General Classification	Typical Structural Position
45–60 kg/m³	Ultra-light	Low-load panels
60–80 kg/m³	Lightweight structural	General sandwich structures
80–100 kg/m³	Medium structural	Higher-load panels
100–130 kg/m³	High structural	Local high-load areas
130–160 kg/m³	High-density	Concentrated loads
160–200 kg/m³	Very high-density	Severe local loading
>200 kg/m³	Special-purpose	Inserts/local reinforcement

The density alone does not define the suitability of a grade.

The engineer must compare density with:

• core thickness,
• core shear modulus,
• core shear strength,
• compression strength,
• panel dimensions,
• face-sheet properties,
• load case.

---

6. Engineering Thickness Framework

PVC Foam Core is available in many thicknesses, depending on the manufacturing and application requirements.

A preliminary design matrix can be organized as follows:

Core Thickness	Typical Structural Role
5 mm	Thin lightweight panels
10 mm	Interior/low-load structures
15 mm	Moderate sandwich construction
20 mm	General structural panels
25–30 mm	Higher stiffness
40–50 mm	High stiffness sandwich
60–80 mm	Deep structural sandwich
>80 mm	Specialized structures

Thickness should never be selected independently from density.

---

7. A Simple Engineering Comparison

Consider two conceptual designs.

Design A

80 kg/m³ PVC Foam Core × 30 mm

Design B

120 kg/m³ PVC Foam Core × 20 mm

Design B has significantly higher core density.

But Design A has a thicker structural depth.

Depending on the face-sheet laminate and loading condition, Design A may provide better bending stiffness despite having a lower-density core.

This illustrates why:

Higher density does not automatically mean higher panel stiffness.

---

8. Core Mass Calculation

Core mass can be estimated as:

[
M_c = \rho_c V_c
]

For a flat panel:

[
M_c = \rho_c A t_c
]

where:

• (M_c) = core mass
• (\rho_c) = core density
• (A) = panel area
• (t_c) = core thickness

Therefore, increasing thickness directly increases core mass.

Increasing density also directly increases mass.

The optimization problem is to determine which increase produces the most useful structural performance per unit of added mass.

---

9. Specific Structural Efficiency

One useful engineering concept is:

[
\eta = \frac{\text{Structural Performance}}{\text{Added Mass}}
]

For bending-dominated sandwich panels, increasing thickness can provide a particularly favorable stiffness-to-weight improvement because of the geometric leverage created by separating the face sheets.

For compression- or shear-dominated structures, increasing density may become more attractive.

Thus:

Bending Dominated

Thickness becomes increasingly important.

Shear Dominated

Core shear modulus and strength become increasingly important.

Point Load Dominated

Compression strength and local density become increasingly important.

---

10. Load Case Determines the Optimization Strategy

Dominant Load	Primary Design Variable
Global Bending	Core Thickness
Core Shear	Density + Thickness
Point Load	Density + Local Reinforcement
Compression	Density + Face Sheet
Buckling	Thickness + Core Modulus
Fatigue	Complete Sandwich System
Impact	Core Structure + Facesheets
Fastener Load	Local High-Density Core
Long Span	Thickness + Shear Modulus

This table is more useful than a simple density ranking.

---

11. Bending-Dominated Panel Design

For a panel carrying distributed transverse loads, bending stiffness often governs.

Increasing core thickness:

5 mm → 10 mm → 20 mm → 30 mm

can substantially increase the structural depth.

The face sheets move farther apart, which increases the panel’s second moment of area.

This is why a lightweight, thick-core sandwich panel can outperform a thin, dense-core panel in bending-dominated applications.

Typical examples include:

• Marine decks
• Vehicle floors
• Large wall panels
• Wind turbine shells
• Transportation roofs
• Industrial platforms

---

12. Shear-Dominated Panel Design

When the panel is short, heavily loaded or subjected to high transverse shear, core shear performance becomes more important.

The engineer should evaluate:

• Core shear strength
• Core shear modulus
• Core thickness
• Panel span
• Load distribution

ASTM C273/C273M provides a standardized method for determining core shear properties. (store.astm.org)

ASTM C393/C393M can then be used to evaluate the complete sandwich construction.

This distinction is important because a core may have excellent bare-core properties but behave differently after bonding into a real sandwich.

---

13. Core Shear Area and Thickness

A simplified relationship is:

[
\tau = \frac{V}{b t_c}
]

where:

• (V) = transverse shear force
• (b) = panel width
• (t_c) = core thickness

Increasing core thickness increases the effective shear area.

Therefore, thickness can improve both:

• bending stiffness,
• shear capacity,

although the exact response depends on the sandwich geometry and failure mechanism.

This is one reason why increasing thickness can sometimes be more efficient than simply increasing density.

---

14. Compression-Dominated Design

For concentrated loads, density becomes more important.

Suppose a panel carries a heavy machine support.

The load is transferred through a relatively small area.

The core experiences local compression.

In this situation:

Core Thickness Alone May Not Be Enough

The engineer may require:

• Higher-density PVC Foam Core
• Local insert
• Load-spreading plate
• Higher-density core patch
• Structural laminate reinforcement

This creates the concept of density zoning.

---

15. Density Zoning

Instead of using one density throughout the panel:

Low Density

→ large general area

Medium Density

→ structural load zones

High Density

→ inserts and concentrated loads

This can reduce overall panel mass while maintaining local strength.

Zone	Example Density Strategy
General Panel	60–80 kg/m³
Structural Region	80–120 kg/m³
High Load	120–160 kg/m³
Insert	160–250+ kg/m³
Edge	Medium/high density

Actual values must be validated against the structural design.

---

16. Thickness Zoning

Thickness can also be varied.

For example:

Panel Zone	Example Core Thickness
Low-load edge	10–20 mm
General area	20–30 mm
High-stiffness zone	30–50 mm
Structural transition	40–60 mm
Local reinforcement	Custom

Thickness zoning can provide additional weight optimization.

However, thickness transitions must be designed carefully because abrupt changes can generate stress concentrations.

---

17. Combined Density + Thickness Optimization

The most advanced design uses both variables.

For example:

Zone A

60 kg/m³ × 30 mm

Zone B

80 kg/m³ × 30 mm

Zone C

120 kg/m³ × 25 mm

Zone D

160 kg/m³ × 20 mm

The objective is not to make the whole panel identical.

The objective is to create a structurally optimized material map.

---

18. Parameter Comparison Matrix

A conceptual comparison:

Configuration	Density	Thickness	Relative Mass	Stiffness Potential	Local Strength
A	60 kg/m³	20 mm	Low	Medium	Low
B	60 kg/m³	30 mm	Medium	High	Low–Medium
C	80 kg/m³	20 mm	Medium	Medium	Medium
D	80 kg/m³	30 mm	Medium–High	High	Medium
E	120 kg/m³	20 mm	High	Medium	High
F	120 kg/m³	30 mm	Very High	Very High	High

The correct selection depends on which performance parameter governs.

---

19. Real Engineering Case — Wind Turbine Blade Sandwich Structures

Wind turbine blades provide an excellent example of thickness-density optimization.

Blade shells are subjected to:

• aerodynamic loads,
• bending,
• shear,
• compression,
• cyclic fatigue,
• local buckling.

Research on wind turbine blade sandwich structures has shown that foam density and core machining configuration influence structural response and failure mechanisms. (sciencedirect.com)

For such structures, simply specifying:

“Use the highest-density PVC Foam Core”

would not necessarily be the optimal solution.

A more rational approach is:

Low-density core → low-load aerodynamic regions

Medium-density core → general shell

Higher-density core → high-load structural regions

Local reinforcement → concentrated load areas

---

20. Real Engineering Case — Tapered Sandwich Transition

A tapered PVC Foam Core structure provides another example of thickness optimization.

Published experimental research investigated tapered PVC Foam Core sandwich specimens representative of wind turbine blade structures and compared different taper angles. The results showed that transition geometry could substantially influence both static strength and fatigue behavior. (sciencedirect.com)

The engineering lesson is:

Changing thickness is not only a dimensional change; the transition itself becomes part of the structural design.

Poorly designed thickness transitions can create:

• stress concentrations,
• local debonding,
• core cracking,
• premature fatigue damage.

---

21. Real Engineering Case — Marine Deck

Consider a conceptual marine deck panel.

Option A

80 kg/m³ × 20 mm

Option B

60 kg/m³ × 30 mm

Option B has a lower-density core but greater thickness.

If bending stiffness governs, the thicker sandwich may provide an attractive structural-to-weight ratio.

However, if the deck contains concentrated loads from:

• seats,
• machinery,
• fittings,
• supports,

local high-density reinforcement may still be required.

This illustrates the value of combining:

Low-density structural core + local high-density reinforcement.

---

22. Real Engineering Case — Transportation Floor

Transportation flooring experiences a combination of:

• distributed load,
• wheel load,
• point load,
• vibration,
• impact,
• fatigue.

A practical design may use:

Medium-density PVC Foam Core

for the main panel, combined with:

Higher-density inserts

under concentrated load locations.

Increasing the entire panel to a very high density may increase weight without providing equivalent benefit.

The engineering objective is:

Put material where the load requires it.

---

23. Core Thickness and Local Buckling

Core thickness can also influence face-sheet stability.

A sandwich core supports the face sheets against local instability.

If the core is too thin or too compliant, the face sheet can wrinkle under compression.

Potential solutions include:

• Increasing core thickness
• Increasing core density
• Increasing core shear modulus
• Increasing face-sheet thickness
• Improving bonding

The correct solution depends on which parameter is controlling the instability.

---

24. When Increasing Density Is Better Than Increasing Thickness

Increasing density may be preferable when:

1. Point loads dominate

The core needs greater compression strength.

2. Insert loads dominate

Fasteners or fittings require local load transfer.

3. Core shear governs

The existing core cannot support the required shear stress.

4. Geometry cannot accommodate additional thickness

The available envelope may be fixed.

5. Local reinforcement is required

A high-density patch can be more efficient than increasing the entire panel thickness.

---

25. When Increasing Thickness Is Better Than Increasing Density

Increasing thickness may be preferable when:

1. Bending stiffness governs

The panel needs greater structural depth.

2. Panel span is large

Long spans amplify deflection.

3. Weight reduction is critical

A lower-density but thicker core may produce high stiffness efficiently.

4. Global buckling is a concern

Greater sandwich depth can improve structural stability.

5. The face sheets already provide sufficient strength

The core mainly needs to separate and stabilize the skins.

---

26. Engineering Optimization Workflow

A practical design workflow can be:

Step 1 — Define Load

Determine:

• bending,
• shear,
• compression,
• point load,
• impact,
• fatigue.

↓

Step 2 — Identify Governing Failure Mode

Determine whether the design is controlled by:

• core shear,
• compression,
• buckling,
• indentation,
• face-sheet failure,
• interface failure.

↓

Step 3 — Select Preliminary Density

Choose a candidate PVC Foam Core grade.

↓

Step 4 — Select Thickness

Adjust thickness based on stiffness and geometry.

↓

Step 5 — Evaluate Weight

Calculate core mass.

↓

Step 6 — Evaluate Manufacturing

Check:

• machining,
• infusion,
• bonding,
• handling.

↓

Step 7 — Validate

Test the complete sandwich structure.

---

27. Testing Standards for Thickness-Density Optimization

Property	Standard	Why It Matters
Density	ASTM C271/C271M	Confirms actual density
Thickness	ASTM C366/C366M	Dimensional verification
Core Shear	ASTM C273/C273M	Shear capacity/modulus
Core Compression	ASTM C365/C365M	Compression performance
Water Absorption	ASTM C272/C272M	Environmental conditioning
Sandwich Flexure	ASTM C393/C393M	Structural behavior
Facesheet Properties	ASTM D7249/D7249M	Skin contribution
Sandwich Stiffness	ASTM D7250/D7250M	Bending/shear stiffness
Flatwise Tensile	ASTM C297/C297M	Interface/core behavior
Dimensional Stability	ASTM D6772/D6772M	Environmental stability

ASTM’s composite standards framework includes these core and sandwich test methods for material and structural characterization. (store.astm.org)

---

28. Why Complete Sandwich Testing Is Necessary

Suppose two PVC Foam Core grades have:

Similar Density

but different:

• shear modulus,
• cell morphology,
• surface quality,
• dimensional stability.

Their finished sandwich panels can behave differently.

Similarly, the same PVC Foam Core grade can behave differently when manufactured with:

• different face sheets,
• different resin systems,
• different adhesive thickness,
• different cure conditions,
• different machining.

Therefore:

[
\text{Core Qualification}
\neq
\text{Complete Sandwich Qualification}
]

Both are necessary for critical applications.

---

29. Manufacturing Effects on Thickness Selection

Increasing core thickness can introduce manufacturing challenges.

Potential issues include:

• longer infusion distance,
• more difficult conformability,
• increased handling damage,
• more complex edge treatment,
• greater machining depth,
• higher dimensional tolerance requirements.

For thick PVC Foam Core, suppliers should be able to control:

• thickness,
• flatness,
• density,
• machining depth,
• groove geometry,
• taper accuracy.

A theoretical optimum that cannot be manufactured consistently is not a practical optimum.

---

30. Thickness Tolerance and Structural Performance

Consider a nominal:

30 mm PVC Foam Core

If actual thickness varies significantly across the panel, the sandwich depth also varies.

That can create:

• stiffness variation,
• local stress concentration,
• uneven face-sheet support,
• dimensional problems.

Therefore, procurement should define:

Nominal Thickness + Tolerance + Measurement Method

rather than simply:

30 mm Core

---

31. Density Tolerance Is Equally Important

Suppose the target density is:

80 kg/m³

The actual production material may vary around that target.

Density variation can affect:

• core weight,
• compression properties,
• shear properties,
• machining behavior,
• panel consistency.

For structural applications, the buyer should request:

• nominal density,
• allowable tolerance,
• batch-to-batch variation,
• sampling procedure,
• test method.

---

32. Supplier Comparison: A Better Procurement Table

Instead of comparing only price:

Supplier	Density	Thickness	Price
A	80	20 mm	Low
B	80	20 mm	Medium
C	80	20 mm	High

Use:

Parameter	Supplier A	Supplier B	Supplier C
Density Tolerance
Thickness Tolerance
Shear Strength
Shear Modulus
Compression Strength
Density Uniformity
Machining Accuracy
Taper Capability
Surface Quality
Test Documentation
Batch Traceability
Production Capacity
Sample Qualification

This allows buyers to compare engineering value, rather than only purchase price.

---

33. Procurement Decision: Density or Thickness?

A buyer can use this simplified logic.

If the engineer says:

“Panel is too flexible.”

→ First investigate core thickness and sandwich depth.

If the engineer says:

“Core is crushing.”

→ Investigate core density/compression strength.

If the engineer says:

“Core is shearing.”

→ Investigate shear strength + thickness + load area.

If the engineer says:

“Face sheet is wrinkling.”

→ Investigate core modulus + thickness + skin design.

If the engineer says:

“Point load creates a dent.”

→ Investigate local high-density reinforcement.

If the engineer says:

“Panel is too heavy.”

→ Investigate lower-density core + increased thickness, where geometry permits.

---

34. A Practical Optimization Example

Suppose a conceptual panel requires:

• High bending stiffness
• Moderate shear load
• Low weight
• Several concentrated mounting points

A poor strategy would be:

High-density core throughout the panel

A potentially better strategy would be:

General Panel

60–80 kg/m³ PVC Foam Core

Structural Regions

80–100 kg/m³

Mounting Locations

120–200+ kg/m³ local reinforcement

Thickness

Increase the general core thickness to obtain the required bending stiffness.

This creates a hybrid density-thickness architecture.

---

35. Optimization Is a Multi-Objective Problem

The final design should balance:

[
\text{Minimize Mass}
]

subject to:

[
\text{Stiffness} \geq \text{Required}
]

[
\text{Strength} \geq \text{Required}
]

[
\text{Fatigue Life} \geq \text{Required}
]

[
\text{Manufacturability} \geq \text{Required}
]

[
\text{Safety Margin} \geq \text{Required}
]

This is a much more realistic engineering formulation than simply selecting the strongest core.

---

36. Procurement Should Follow the Structural Requirement

The buyer should not independently choose:

“We usually buy 80 kg/m³.”

Instead, the engineering department should provide:

• Required density range
• Required thickness
• Required mechanical properties
• Machining geometry
• Environmental requirements
• Test standards
• Tolerances

Procurement then evaluates suppliers against the approved technical specification.

This prevents purchasing decisions from driving structural design.

---

37. Recommended RFQ Format

A professional PVC Foam Core RFQ can be structured like this:

Product

PVC Foam Core Material

Application

Composite Sandwich Panel

Density

Target: ___ kg/m³

Tolerance: ___

Thickness

Target: ___ mm

Tolerance: ___

Mechanical Requirements

Property	Minimum Requirement	Test Standard
Shear Strength	___	ASTM C273
Shear Modulus	___	ASTM C273
Compression Strength	___	ASTM C365
Density	___	ASTM C271
Water Absorption	___	ASTM C272

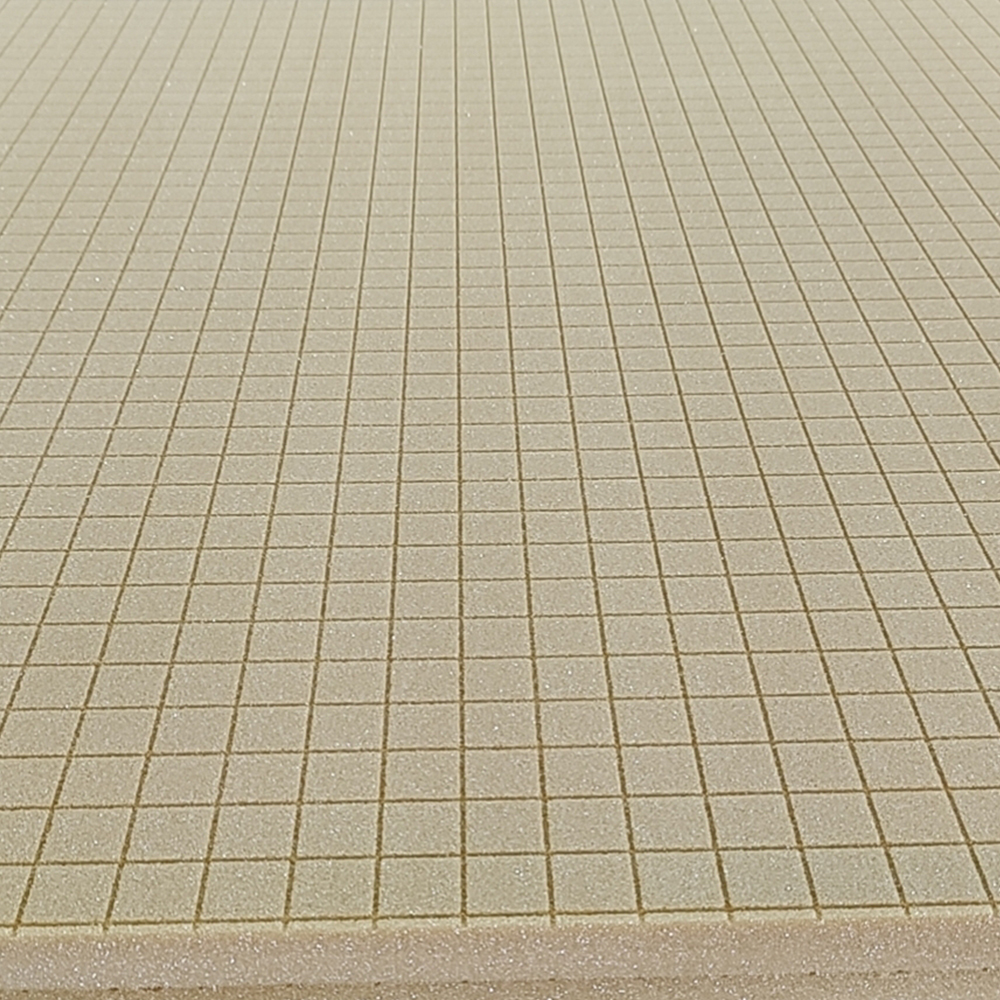

Machining

• Groove
• Perforation
• CNC contour
• Taper
• Custom cutting

Quality

• Batch traceability
• Inspection report
• Test report
• Dimensional inspection

---

38. Supplier Capability Checklist

Before approving a PVC Foam Core manufacturer, verify whether the supplier can provide:

• Multiple density grades
• Multiple thicknesses
• Consistent cell structure
• CNC machining
• Grooving
• Perforation
• Tapering
• Contour cutting
• Custom sheet dimensions
• Batch traceability
• Mechanical test reports
• Production samples
• Technical support

The ability to supply several density/thickness combinations is particularly valuable for engineering optimization.

---

39. Five Questions for a Technical Supplier

1. Can you supply the same PVC Foam Core in multiple densities?

This helps engineers optimize density zoning.

2. Can you provide multiple thicknesses?

This allows stiffness optimization.

3. Can you produce tapered or contoured core?

Important for complex composite structures.

4. Can you machine grooves and perforations according to engineering drawings?

Important for vacuum infusion and structural consistency.

5. Can you provide mechanical data for the actual production grade?

This is essential for qualification.

---

40. Final Engineering Decision Matrix

Design Problem	Preferred First Investigation
Excessive Deflection	Increase Core Thickness
Core Shear Failure	Increase Shear Capacity
Local Crushing	Increase Density Locally
High Panel Weight	Reduce Density / Optimize Thickness
Buckling	Increase Sandwich Depth
Point Load Damage	Local Reinforcement
Poor Fatigue Life	Improve Complete Sandwich System
Interface Failure	Improve Bonding
Manufacturing Difficulty	Optimize Thickness/Machining
Excessive Cost	Optimize Density Zoning

---

41. Final Design Checklist

Before freezing a PVC Foam Core specification, engineers should confirm:

Structural

• Governing load case identified
• Governing failure mode identified
• Required bending stiffness calculated
• Core shear verified
• Compression verified
• Buckling verified
• Local loads evaluated
• Fatigue evaluated where applicable

Material

• Density selected
• Thickness selected
• Mechanical properties verified
• Environmental properties evaluated

Manufacturing

• Machining validated
• Groove geometry confirmed
• Perforation confirmed
• Taper confirmed
• Bonding process validated

Procurement

• Tolerance specified
• Test standards specified
• Batch traceability required
• Supplier samples approved
• Production capacity confirmed

---

42. Conclusion: Optimize the Sandwich, Not Just the Core

The central engineering principle of PVC Foam Core selection can be summarized in one sentence:

Density determines much of the core’s intrinsic mechanical capability, while thickness creates structural leverage through face-sheet separation.

Neither variable should be optimized independently.

For bending-dominated structures, increasing core thickness can be an extremely effective way to increase stiffness without simply increasing core density.

For concentrated loads and compression-dominated regions, higher-density PVC Foam Core may be more appropriate.

For complex structures, the most efficient solution may be a combination of:

Density Zoning

Thickness Zoning

Local Reinforcement

Controlled Machining

Qualified Face-Sheet/Core Bonding

This approach is particularly valuable in wind turbine blades, marine structures, transportation panels and large industrial sandwich structures, where every additional kilogram can have a downstream effect on structural design, handling and operating efficiency.

The engineering process should therefore move through:

Load Analysis

→ Failure Mode Identification

→ Density Selection

→ Thickness Optimization

→ Manufacturing Validation

→ Sandwich Testing

→ Structural Qualification

→ Production Control

For procurement teams, the implication is equally important.

Do not ask only:

“What is your PVC Foam Core price per cubic meter?”

Ask:

“Which density and thickness combinations can you supply consistently, what mechanical data support them, what machining tolerances can you control, and can you provide qualified production samples?”

That is the difference between purchasing a foam material and sourcing a structurally qualified composite core system.
